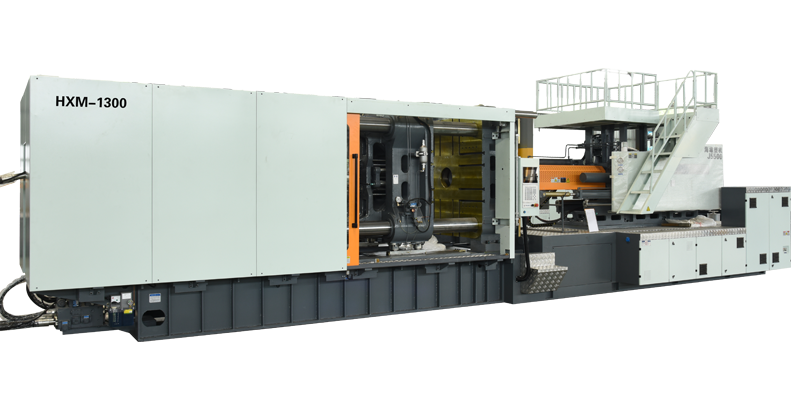

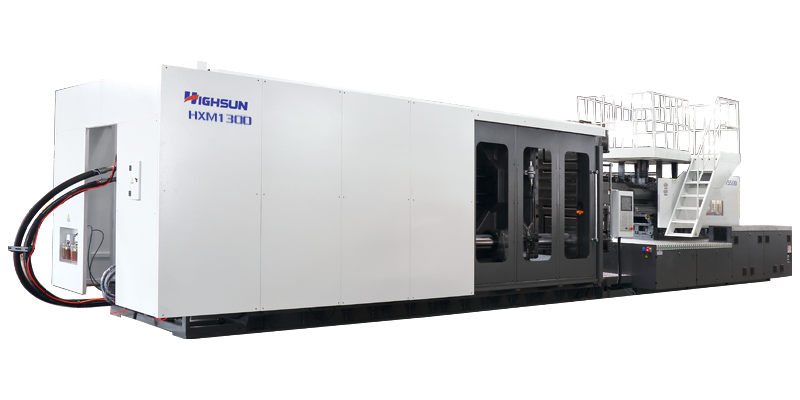

HXM1300: HXM servo injection molding machine

HXM1300: HXM servo injection molding machine

1300T Servo Energy-Saving Injection Molding Machine achieves high-efficiency, low-consumption production of oversized products through the deep integration of servo drive technology, energy recovery systems, and intelligent control. It is specifically tailored for the green manufacturing upgrade demands of industries such as automotive and home appliances. With long-term energy-saving benefits capable of offsetting initial investment costs, this machine stands as an ideal choice for large-scale production.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM1300: HXM servo injection molding machine
PREV：HXM1100: HXM servo injection molding machine
NEXT：HXM2000: HXM servo injection molding machine

  • MODEL: HXM1300/13000

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    120

    130

    140

    SCREW L/D RATIO

    L/D

    24

    23

    21

    INJECTION CAPACITY IN THEORY

    cm³

    7012

    8229

    9544

    INJECTION WEIGHT(PS)

    g

    6380

    7488

    8685



    oz

    225.0

    264.1

    306.3

    INJECTION PRESSURE

    MPa

    188

    160

    138

    INJECTION RATE

    g/s

    930

    1092

    1266

    PLASTICIZING CAPACITY

    g/s

    101

    115

    135

    SCREW SPEED

    rpm

    95

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    13000

    MOVING MOULD-PLATE STROKE

    mm

    1400

        MAX. MOULD HEIGHT

    mm

    1300

    MIN. MOULD HEIGHT

    mm

    550

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1320*1280

    HYDRAULIC EJECTOR FORCE

    KN

    300

    HYDRAULIC EJECTOR STROKE

    mm

    400

    EJECTOR NUMBER

    n

    21

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40+40

    HEATING CAPACITY

    KW

    99.8

    MACHINE DIMENSION (L*W*H)

    m

    13.76*2.70*3.90

    MACHINE WEIGHT

    t

    66.6

    OIL TANK CAPACITY

    L

    1400
