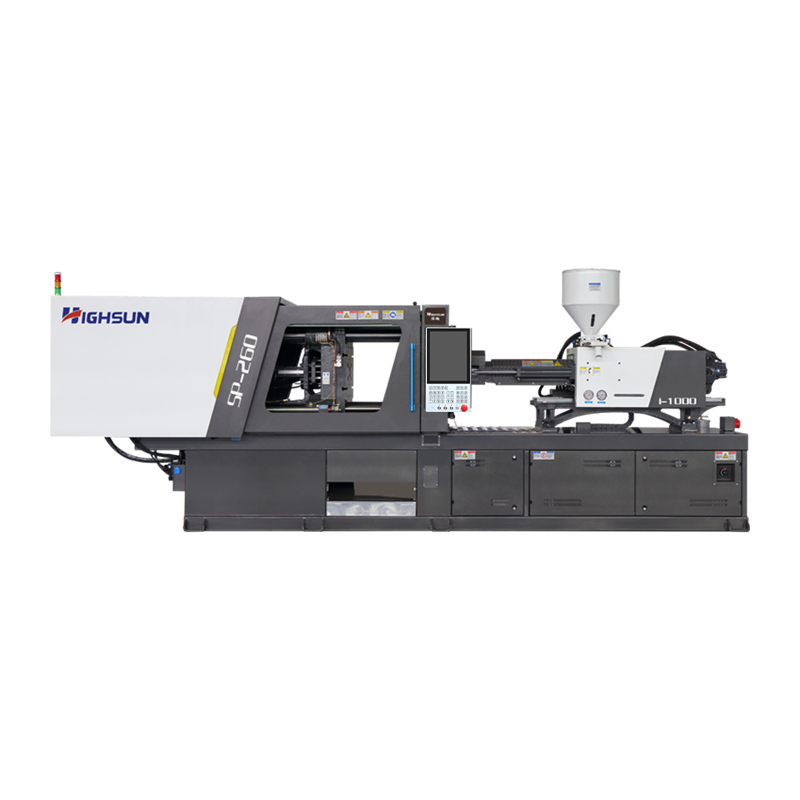

SP260: SP smart power injection molding machine
SP Smart Power High Performance Machine

SP260: SP smart power injection molding machine

The SP260 has a large mold moving stroke, which can be adapted to a variety of molds of different specifications to meet diverse production needs. At the same time, through long-term operation monitoring, the contact stress of its pin shaft is relatively low, ensuring the stability of the equipment during long-term operation. When producing plastic products with complex structures, such as small automotive interior parts, through sampling inspection of product quality, the product qualification rate can reach more than 98%, and it can clearly present the product details, effectively reducing defects such as flash and bubbles. After detecting the wear of the key components of the equipment, after long-term operation, the wear degree is much lower than the industry average level, effectively guaranteeing the continuity and stability of production.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • SP260: SP smart power injection molding machine
PREV：SP200: SP smart power injection molding machine
NEXT：SP300: SP smart power injection molding machine

  • MODEL: SP260/i1000

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    50

    55

    60

    SCREW L/D RATIO

    L/D

    22

    20

    20

    INJECTION CAPACITY IN THEORY

    cm3

    490

    593

    706

    INJECTION WEIGHT(PS)

    g

    446

    540

    643

    INJECTION PRESSURE

    MPa

    236

    194

    163

    INJECTION RATE

    g/s

    233

    282

    336

    PLASTICIZING CAPACITY

    g/s

    28

    37

    44

    SCREW SPEED

    rpm

    240

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2600

    MOVING MOULD-PLATE STROKE

    mm

    580

    MAX. MOULD HEIGHT

    mm

    650

    MIN. MOULD HEIGHT

    mm

    250

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    580*580

    HYDRAULIC EJECTOR FORCE

    KN

    87

    HYDRAULIC EJECTOR STROKE

    mm

    160

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    38

    HEATING CAPACITY

    KW

    22.1

    MACHINE DIMENSION (L*W*H)

    m

    6.04*1.60*2.28

    MACHINE WEIGHT

    t

    9.2

    OIL TANK CAPACITY

    L

    330
About Highsun
Ningbo Beilun Highsun Machinery Co., Ltd.
HIGHSUN MACHINERY is located in Beilun Science and Technology Park, Ningbo, Zhejiang province, which is "the capital city of plastic machines" in China. We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand.

We are a professional China SP260: SP smart power injection molding machine suppliers and SP260: SP smart power injection molding machine company, We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand. has long been dedicated to delicacy management and zero defect production, and has formed a characteristic series represented by small tonnage of hybrid machine, medium tonnage of toggle machine, and large tonnage of two-platen machine.
Certificate Of Honor

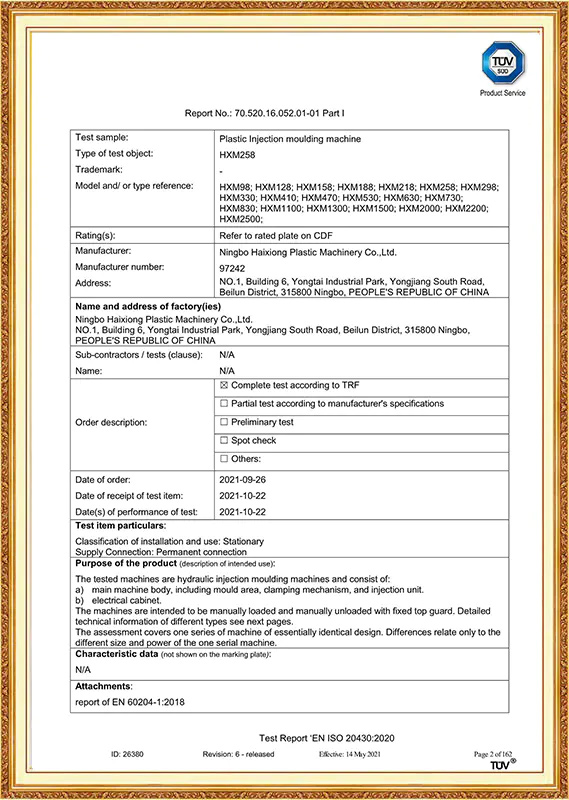

  • Test Reports

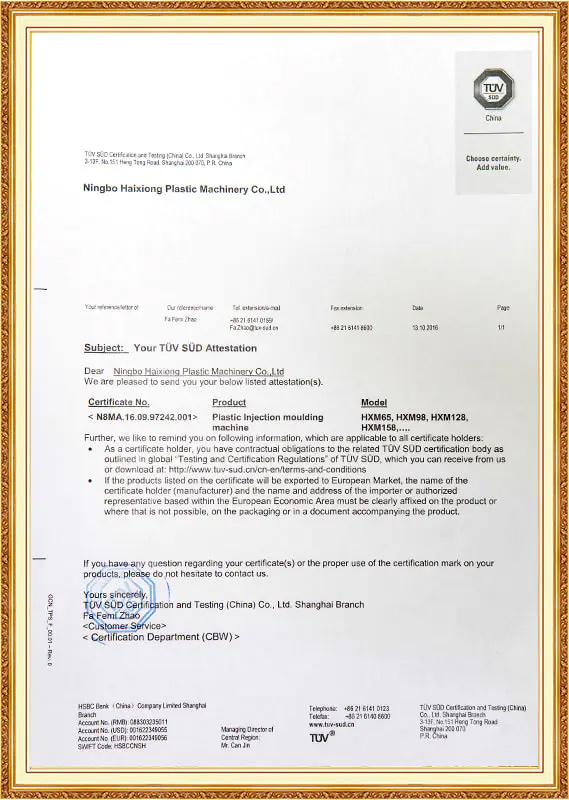

  • Test Reports

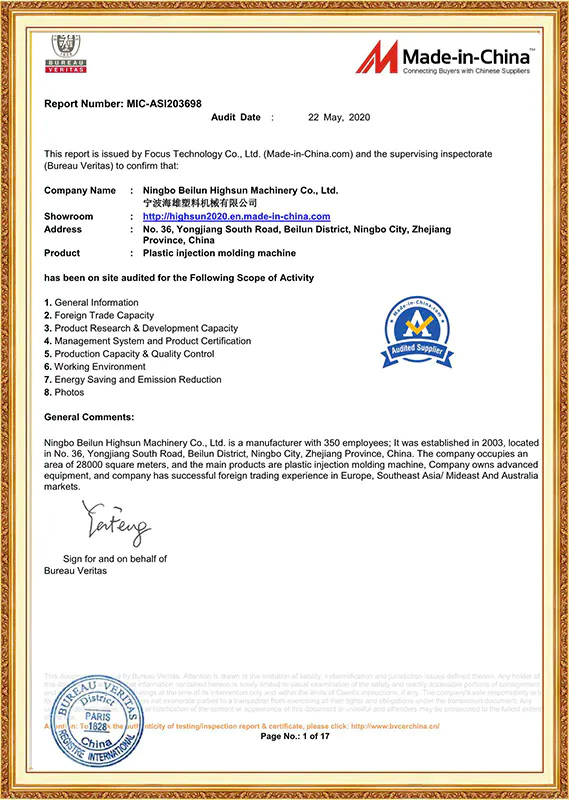

  • Test Reports

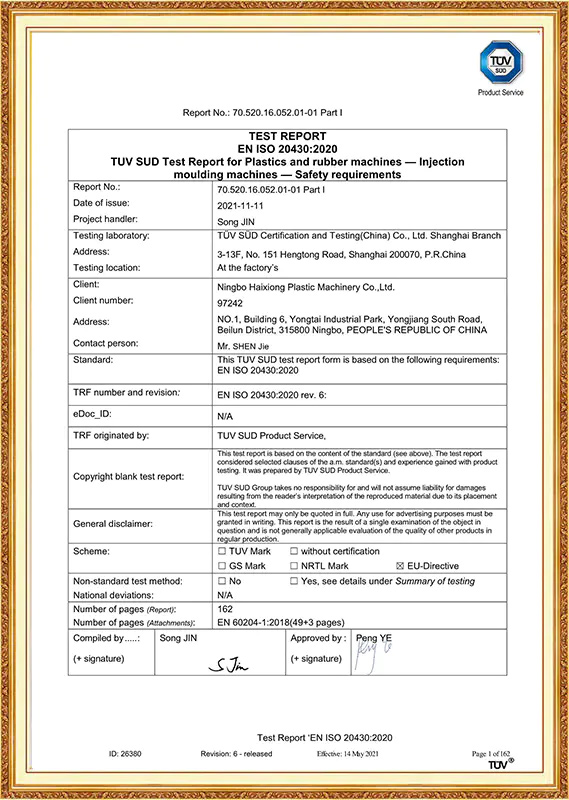

  • Test Reports

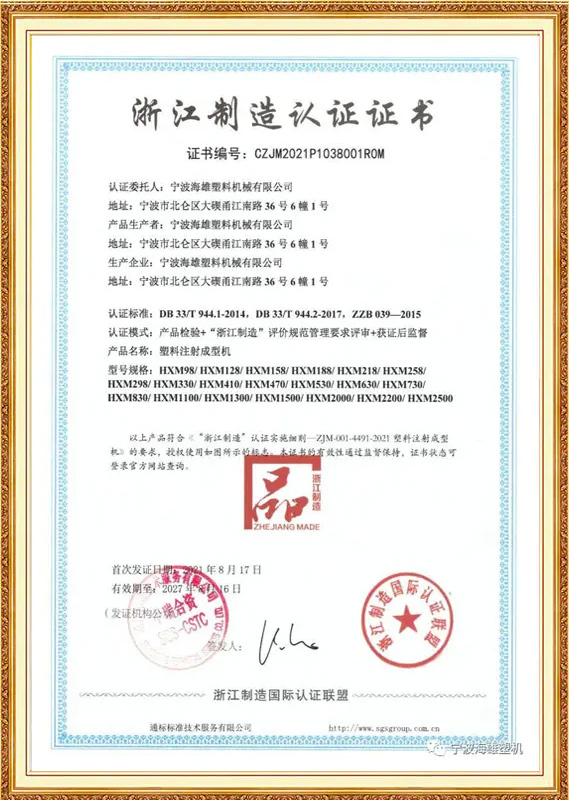

  • Our Certificates
