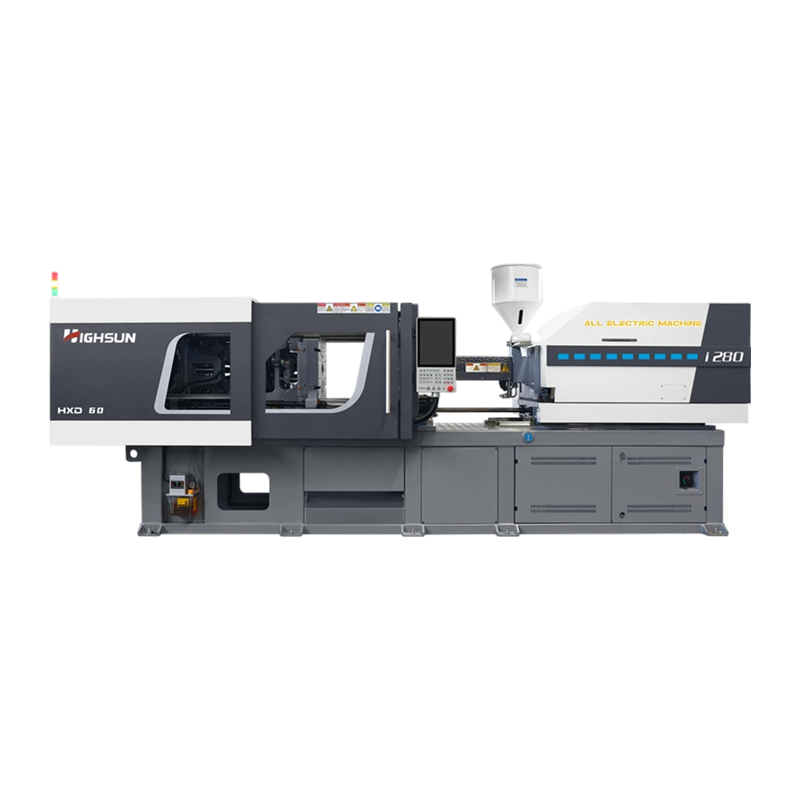

HYD60 All-Electric Series Injection Molding Machines
HYD All-Electric Series Injection Molding Machines

HYD60 All-Electric Series Injection Molding Machines

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HYD60 All-Electric Series Injection Molding Machines
PREV：HYD90 All-Electric Series Injection Molding Machines
NEXT：No next article

  • MODEL: HXD60

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    22

    25

    28

    SCREW L/D RATIO

    L/D

    22

    22

    22

    INJECTION CAPACITY IN THEORY

    cm³

    49

    63

    80

    INJECTION WEIGHT(PS)

    g

    44

    58

    72

    INJECTION PRESSURE

    MPa

    280

    220

    175

    HOLDING PERSSURE

    MPa

    224

    176

    140

    INJRCTION SPEED

    mm/s

    200

    SCREW SPEED

    rpm

    400

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    600

    MOVING MOULD-PLATE STROKE

    mm

    270

    MAX. MOULD HEIGHT

    mm

    370

    MIN. MOULD HEIGHT

    mm

    150

    PLATEN SIZE

    mm

    535*535

    EFFECTIVE DISTANCE BETWEEN TIE BARS

    mm

    370*370

    EJECTOR FORE

    KN

    20

    EJECTOR STROKE

    mm

    80

    OTHERS

    PTOTAL POWER

    MPa

    29.8

    OVERALL DIMENSIONS

    m

    4.09*1.31*1.70

    MACHINE WEIGHT

    t

    3.5
