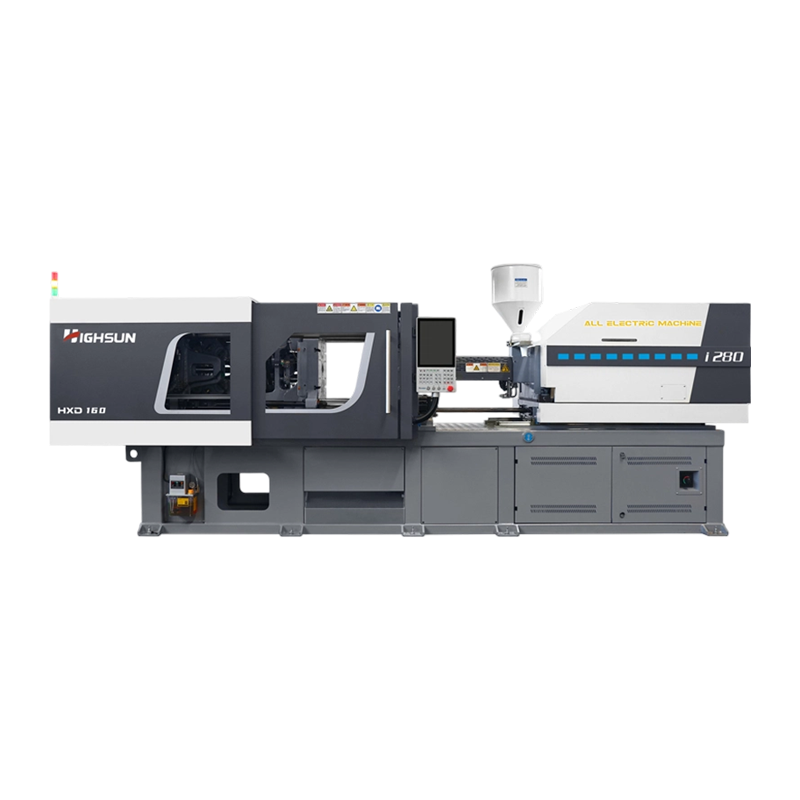

HYD160 All-Electric Series Injection Molding Machines
HYD All-Electric Series Injection Molding Machines

HYD160 All-Electric Series Injection Molding Machines

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HYD160 All-Electric Series Injection Molding Machines
PREV：No previous article
NEXT：HYD120 All-Electric Series Injection Molding Machines

  • MODEL: HXD160

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    32

    36

    40

    SCREW L/D RATIO

    L/D

    24

    21

    21

    INJECTION CAPACITY IN THEORY

    cm³

    144

    183

    226

    INJECTION WEIGHT(PS)

    g

    131

    166

    205

    INJECTION PRESSURE

    MPa

    253

    200

    162

    HOLDING PERSSURE

    MPa

    202

    160

    129

    INJRCTION SPEED

    mm/s

    200

    SCREW SPEED

    rpm

    400

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    1600

    MOVING MOULD-PLATE STROKE

    mm

    430

    MAX. MOULD HEIGHT

    mm

    520

    MIN. MOULD HEIGHT

    mm

    175

    PLATEN SIZE

    mm

    775*775

    EFFECTIVE DISTANCE BETWEEN TIE BARS

    mm

    530*530

    EJECTOR FORE

    KN

    40

    EJECTOR STROKE

    mm

    125

    OTHERS

    PTOTAL POWER

    MPa

    40.4

    OVERALL DIMENSIONS

    m

    4.86*1.52*1.93

    MACHINE WEIGHT

    t

    5.8
