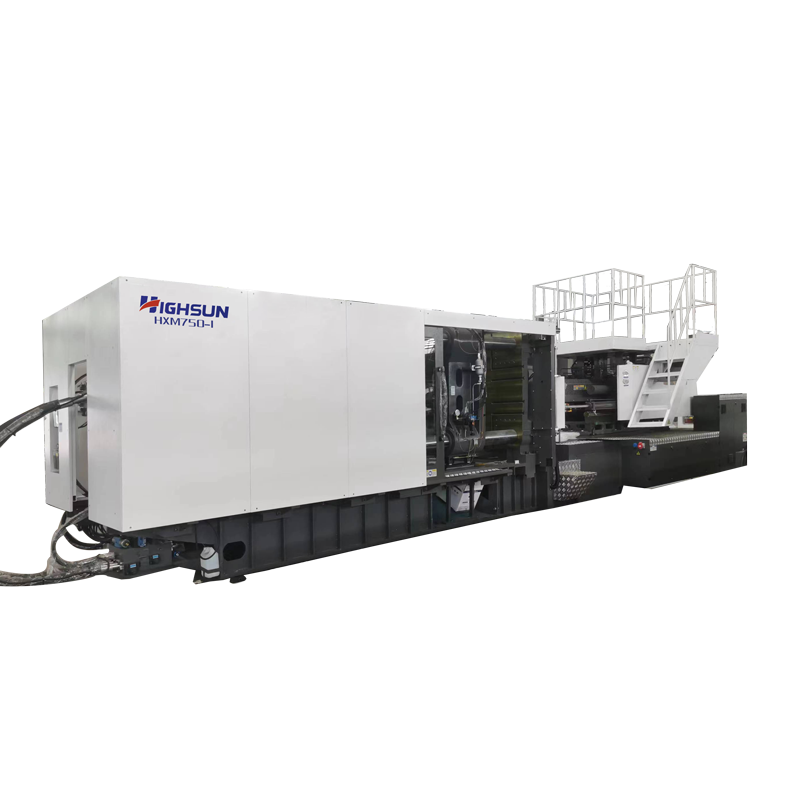

HXM750-I: HXM servo injection molding machine
HXM Servo Machine

HXM750-I: HXM servo injection molding machine

In the production of large automotive exterior components, the machine’s 730-ton clamping force ensures that oversized molds are tightly secured, completely eliminating plastic overflow. This guarantees dimensional accuracy within an ultra-tight tolerance of ±0.05mm, achieving high-quality, high-standard production that meets the automotive industry’s stringent requirements for precision in appearance-critical parts.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM750-I: HXM servo injection molding machine
PREV：No previous article
NEXT：No next article

  • MODEL: HXM750-I/5700

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    85

    90

    SCREW L/D RATIO

    L/D

    22

    21

    INJECTION CAPACITY IN THEORY

    cm3

    2610

    2926

    INJECTION WEIGHT(PS)

    g

    2375

    2663

    oz

    83.7

    93.9

    INJECTION PRESSURE

    MPa

    225

    200

    INJECTION RATE

    g/s

    496

    556

    PLASTICIZING CAPACITY

    g/s

    70

    80

    SCREW SPEED

    rpm

    145

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    7500

    MOVING MOULD-PLATE STROKE

    mm

    1020

        MAX. MOULD HEIGHT

    mm

    980

    MIN. MOULD HEIGHT

    mm

    400

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1020*970

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    280

    EJECTOR NUMBER

    n

    21

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    HEATING CAPACITY

    KW

    53.7

    MACHINE DIMENSION (L*W*H)

    m

    9.67*2.34*2.77

    MACHINE WEIGHT

    t

    33.8

    OIL TANK CAPACITY

    L

    1000
