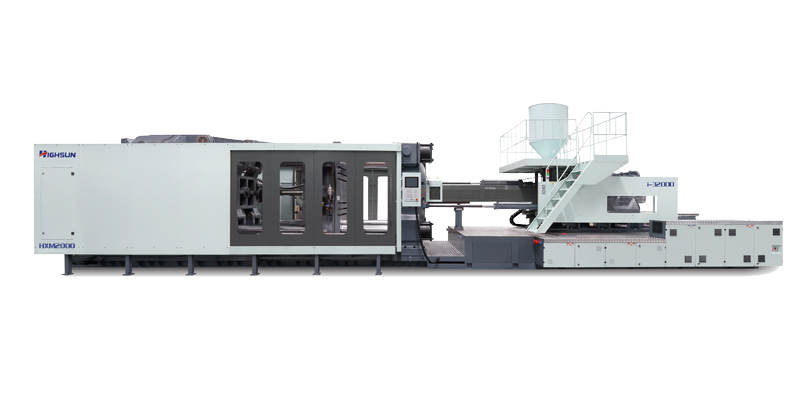

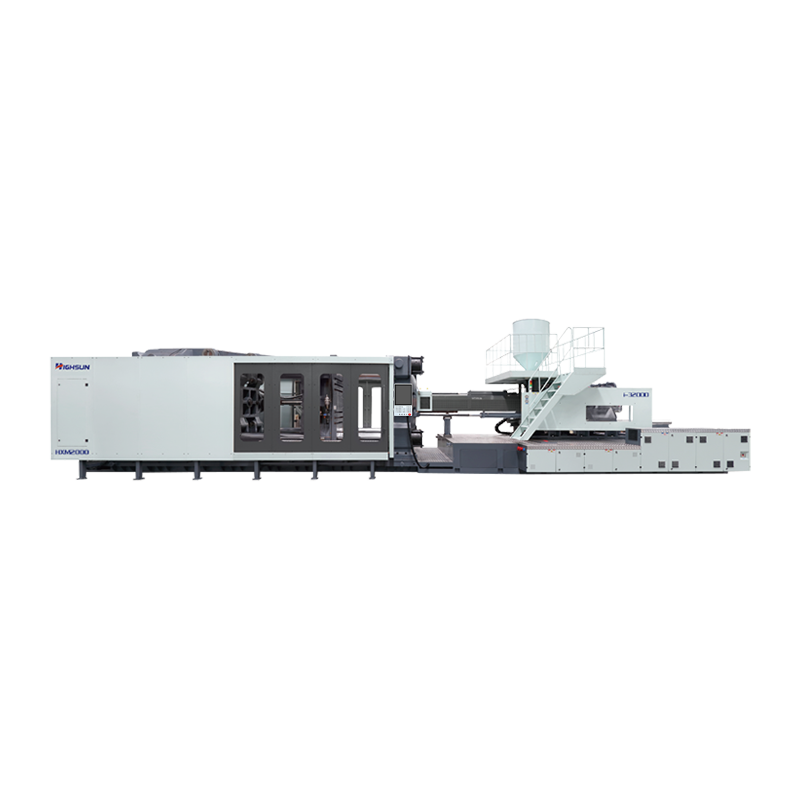

HXM2000: HXM servo injection molding machine

High quality features

The “new breakthrough” of the hydraulic injection molding machine has realized “pressure valve ring control” and “energy supply and demand matching”, professional shape future !

Pressure valve ring control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure is equal to the set pressure.

Matching energy supply and demand: How much energy does the injection molding machine do, how much energy the power system provides, and very little energy loss.

Product Details

High quality characteristics

The "new breakthrough" of hydraulic injection molding machine has realized "pressure valve ring control" and "energy supply and demand matching", leading the development trend of injection molding machine!

Pressure valve ring control: real-time comparison between actual pressure and set pressure and corrections until the actual pressure is equal to the set pressure.

Energy supply and demand matching: as much energy as the injection molding machine needs to do work, the power system will provide as much energy, with very little energy loss.



Super energy saving

40% energy saving than variable pump system. 60% energy saving than fixed pump + fixed speed motor (depending on the product, the energy saving effect is different).



High precision and high response

Using high-precision and high-sensitivity pressure sensors and rotary encoders, the closed-loop control of pressure and flow is realized, and the repeated progress error is less than 1%. It only takes 0.05 seconds for the servo motor to reach the maximum output power.



Low noise

The noise value is within 78db. When the machine is not moving, the servo motor stops rotating almost without noise.



Save cooling water

Using "no fixed pump + fixed speed motor system" overflow heating. The temperature of hydraulic oil is low, which greatly reduces the amount of cooling water.



New clamping structure

Inner-rolled five-point toggle-type clamping mechanism, strengthened by finite element analysis, cast connecting rod and template can effectively reduce stress and deformation, and improve the rigidity and accuracy of the clamping part.



New power composition

The new power system composed of servo motors, servo drives, pressure sensors, rotary encoders, gear pumps and high-precision dedicated controllers can best match the energy requirements of the injection molding machine.

MODEL: HXM2000

TECHNICAL PARAMETER TABLE

A

B

C

D

INJECTION UNIT

SCREW DIAMETER

mm

130

140

150

160

SCREW L/D RATIO

L/D

23

22

21

20

INJECTION CAPACITY IN THEORY

cm3

9291

10075

12370

14074

INJECTION WEIGHT(PS)

g

8455

9805

11256

12807

oz

276.9

321.1

368.5

419.4

INJECTION PRESSURE

MPa

204

176

153

135

INJECTION RATE

g/s

1142

1325

1521

1730

PLASTICIZING CAPACITY

g/s

109

130

150

162

SCREW SPEED

rpm

90

CLAMPING UNIT

CLAMPING FORCE

KN

20000

MOVING MOULD-PLATE STROKE

mm

1600

    MAX. MOULD HEIGHT

mm

1560

MIN. MOULD HEIGHT

mm

710

SPACE BWTWEEN TIE-BARS (W×H)

mm

1620x1480

HYDRAULIC EJECTOR FORCE

KN

520

HYDRAULIC EJECTOR STROKE

mm

400

EJECTOR NUMBER

n

33

OTHERS

PUMP PRESSURE

MPa

17.5

MOTOR POWER

KW

38+38+47+47

HEATING CAPACITY

KW

103.5

MACHINE DIMENSION (L×W×H)

m

15.60x3.50x4.00

MACHINE WEIGHT

t

128

OIL TANK CAPACITY

L

3500
