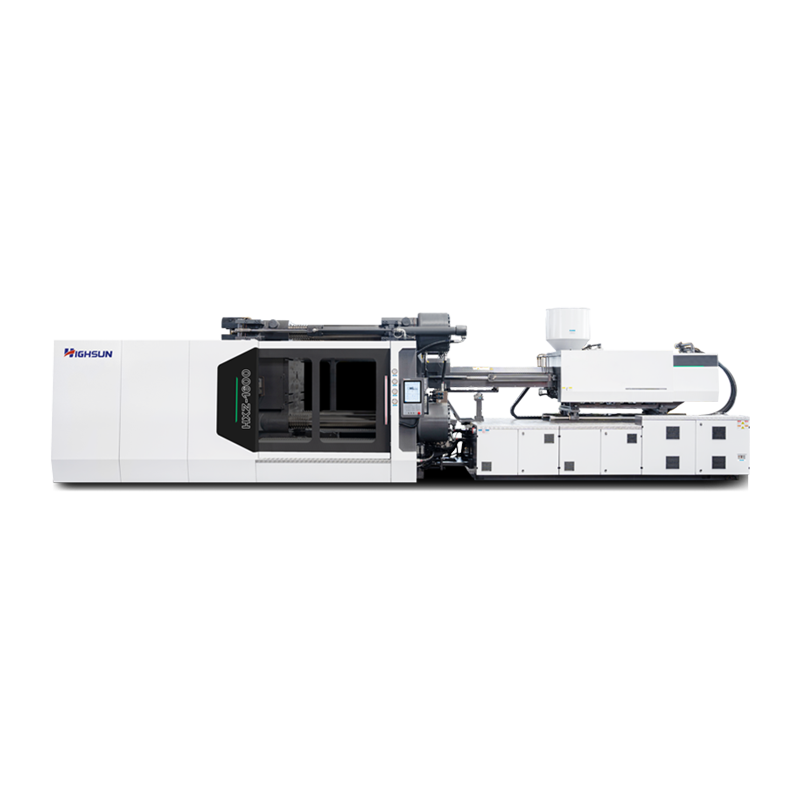

HXZ1600: two plate injection molding machinery series
HXZ The Powerful Two-platen Injection Molding Machine

HXZ1600: two plate injection molding machinery series

The whole machine is made of high-quality steel and components, and undergoes strict processing techniques and quality inspections to ensure that the equipment has a robust structure and stable performance, and can operate reliably in a long-term and high-intensity production environment.
Key components such as clamping cylinders and injection cylinders adopt imported brands, which have excellent sealing performance and durability, reducing the probability of equipment failures and lowering maintenance costs.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXZ1600: two plate injection molding machinery series
PREV：HXZ1800: two plate injection molding machinery series
NEXT：HXZ1400: two plate injection molding machinery series

  • MODEL: HXZ1600

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    130

    140

    150

    SCREW L/D RATIO

    L/D

    23

    22

    21

    INJECTION CAPACITY IN THEORY

    cm³

    8627

    10005

    11486

    INJECTION WEIGHT(PS)

    g

    7851

    9105

    10452

    INJECTION PRESSURE

    MPa

    180

    155

    135

    INJECTION RATE

    g/s

    1240

    1438

    1651

    PLASTICIZING CAPACITY

    g/s

    120

    140

    160

    SCREW SPEED

    rpm

    100

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    16000

    MOVING MOULD-PLATE STROKE

    mm

    2650/1750

    MAX. MOULD HEIGHT

    mm

    1600

    MIN. MOULD HEIGHT

    mm

    700

    MAX DAYLIGHT OPENING

    mm

    3335

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1620*1460

    HYDRAULIC EJECTOR FORCE

    KN

    400

    HYDRAULIC EJECTOR STROKE

    mm

    430

    EJECTOR NUMBER

    n

    25

    OTHERS

    PUMP PRESSURE

    MPa

    25

    MOTOR POWER

    KW

    40+40+47+47

    HEATING CAPACITY

    KW

    118.25

    MACHINE DIMENSION (L*W*H)

    m

    12.5*3.8*3.6

    OIL TANK CAPACITY

    L

    1600
