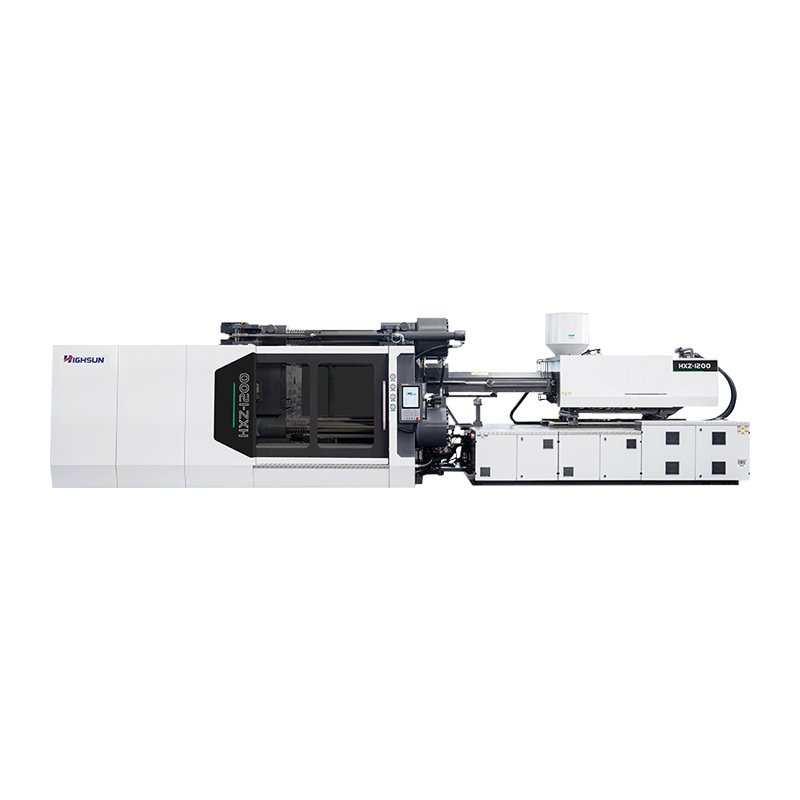

HXZ1200: two plate injection molding machinery series
HXZ The Powerful Two-platen Injection Molding Machine

HXZ1200: two plate injection molding machinery series

Four tie bars bear the same force evenly, so its parallelism of mold plate is good.
Driven by two rapid oil cylinders, the mould movements are high speed, precise and steady. The machine has short cycle time as well as thelow pressure mold protection.
With extra large of opening stroke and maximum mold height, there're two modes of mold opening: mold clamp cylinder opening and rapid clamp cylinder
opening, it's specially suitable for the production of deep cavity products.
The Injection unit adopt design of double-layer structure, linear guide of the nozzle seat to achieve the advantages of lower friction, higher precision of
injection,and more energy-saving.
With the short length, small covering area and light weight, it can raise the land utilization rate and cut down the consumption of raw materials.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXZ1200: two plate injection molding machinery series
PREV：HXZ1400: two plate injection molding machinery series
NEXT：HXZ1000： two plate injection molding machinery series

  • MODEL: HXZ1200

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    100

    110

    120

    SCREW L/D RATIO

    L/D

    24

    22

    21

    INJECTION CAPACITY IN THEORY

    cm³

    4790

    5797

    6898

    INJECTION WEIGHT(PS)

    g

    4359

    5275

    6278

    INJECTION PRESSURE

    MPa

    235

    194

    163

    INJECTION RATE

    g/s

    709

    858

    1021

    PLASTICIZING CAPACITY

    g/s

    90

    101

    112

    SCREW SPEED

    rpm

    110

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    12000

    MOVING MOULD-PLATE STROKE

    mm

    2100/1450

    MAX. MOULD HEIGHT

    mm

    1250

    MIN. MOULD HEIGHT

    mm

    600

    MAX DAYLIGHT OPENING

    mm

    2700

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1310*1210

    HYDRAULIC EJECTOR FORCE

    KN

    350

    HYDRAULIC EJECTOR STROKE

    mm

    400

    EJECTOR NUMBER

    n

    21

    OTHERS

    PUMP PRESSURE

    MPa

    21

    MOTOR POWER

    KW

    47+47+47

    HEATING CAPACITY

    KW

    85.5

    MACHINE DIMENSION (L*W*H)

    m

    10.75*3.35*2.68

    OIL TANK CAPACITY

    L

    1200
