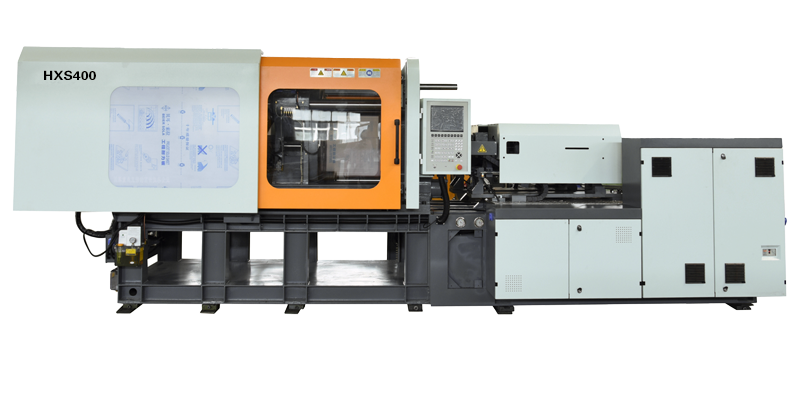

HXS400-HXS Two-Color Injection Molding Machine
HXS Two-Color Machine

HXS400-HXS Two-Color Injection Molding Machine

The 400T two-color injection molding machine, as a cutting-edge piece of equipment, perfectly integrates high-efficiency production, precision manufacturing, and excellent stability. It is a meticulously crafted masterpiece designed to meet the demands of large-scale and highly complex two-color injection molding. Whether it is for the two-color injection molding of small components with extremely high precision requirements or large and complex industrial products, it demonstrates unparalleled adaptability and productivity.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXS400-HXS Two-Color Injection Molding Machine
PREV：No previous article
NEXT：No next article

  • MODEL: HXS400

    TECHNICAL PARAMETER TABLE

    AA

    AB

    AC

    BA

    BB

    BC

    INJECTION UNIT

    SCREW DIAMETER

    mm

    45

    50

    55

    38

    42

    45

    SCREW L/D RATIO

    L/D

    22

    20

    19

    23

    21

    20

    INJECTION CAPACITY IN THEORY

    cm3

    342

    422

    510

    210

    256

    294

    INJECTION WEIGHT(PS)

    g

    311

    384

    465

    190

    233

    268

    oz

    10.9

    13.5

    16.4

    6.7

    8.2

    9.4

    INJECTION PRESSURE

    MPa

    236

    191

    158

    262

    215

    187

    INJECTION RATE

    g/s

    150

    185

    225

    97

    118

    135

    PLASTICIZING CAPACITY

    g/s

    21

    26

    33

    17

    21

    23

    SCREW SPEED

    rpm

    190

    240

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    4000

    MOVING MOULD-PLATE STROKE

    mm

    620

    MAX. MOULD HEIGHT

    mm

    650

    MIN. MOULD HEIGHT

    mm

    250

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1020*620

    HYDRAULIC EJECTOR FORCE

    KN

    65

    HYDRAULIC EJECTOR STROKE

    mm

    200

    EJECTOR NUMBER

    n

    3*2

    WHEEL DIAMETER

    mm

    1100

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30

    21

    HEATING CAPACITY

    KW

    17.45

    16.4

    MACHINE DIMENSION (L*W*H)

    m

    7.30*2.24*2.50

    MACHINE WEIGHT

    t

    17.4

    OIL TANK CAPACITY

    L

    820



    BEARING CAPACITY OF ROTARY PLATEN

    t

    2.5
