Product introduction:


The plasticizing parts with optimized design can improve the plasticizing ability and injection precision of the machine significantly; Screw transmission adopts the spline to connect and the force is unliform when the screw rotates, The moving part is guided by linear guide rail to reduce friction during movement.


The clamping parts with optimized design has a mold-plate structure with a pressing center, which makes the clamping force act on the mold-plate directly and improves the forming accuracy of the product. And it has a larger moving mold-plate stroke as well as reduces the contact stress of the axis pin.


Newly designed lateral mechanical safety structure;The feet slip structure of moving mold-plate is newly designed with oblique-wedge.


Adopt high-precision controller system, provide performance more stable, higher repetition precision, stronger anti-interference and higher level of security protection. Also standard with fuction of energy consumption monitorning.


The movement curve of newly designed five-points double toggle structure shows that the movemen of movable mould-plate has advantages of being faster, more stable and better controllability. And also quicker cycle.


Hydraulic power system uses the motors with high response, high power density, low inertia and low noise to bring unique feeling of high performance and low noise to customers with improved screw pump.





Injection Unit  A B C
Screw diameter mm 22 25 28
Screw L/D ratio L/D 21 21 21
Injection capacity in theory cm³ 41 53 67
Injection weight(PS) g 38 49 61
Injection pressure Mpa 439 340 271
Injection velocity  g/s  48 63 79
Plasticizing capacity g/s  3.2 4.6 6.3
Screw speed rpm 300


Clamping Unit A B C
Clamping force kN 1000
Moving mould-plate stroke mm  350
Max.Mould height  mm  400
Min.Mould height mm  1500
Space between tie-bars  mm  360×360
Hydraulic ejector force kN 49
Hydraulic ejector stroke mm 120
Ejector number n 5


Other A B C
Pump pressure   Mpa 17.5
Driving power  kW 15
Heating capacity  kW 7
Machine dimension  m 4.16×1.18×1.78
Machine weight    t 3.1
Oil tank capacity    L 235

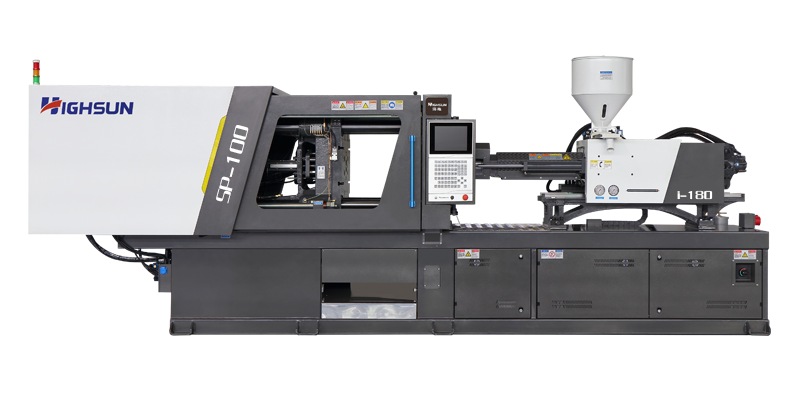

Highsun plastic injecdtion molding machine
