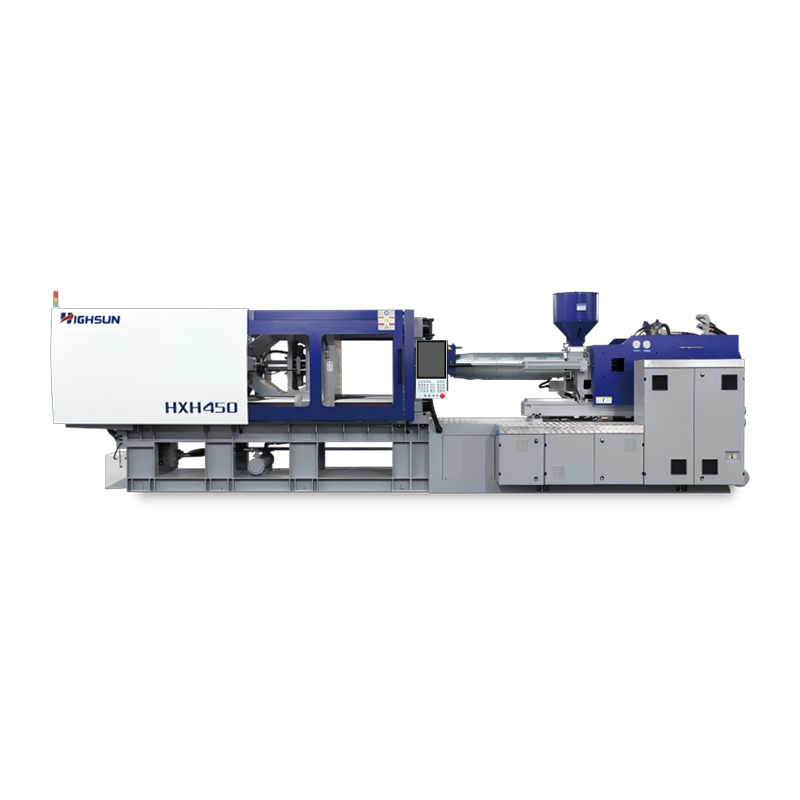

HXH450: HXH high-speed injection molding machine
HXH High-Speed Machine

HXH450: HXH high-speed injection molding machine

Carry out optimized design on the rigidity of the clamping mechanism, injection unit and the machine body, and increase the mold moving stroke and the inner distance of the tie bars. This strengthened clamping mechanism is particularly suitable for the production of plastic products with thin walls and complex shapes, which can effectively avoid product defects caused by mold deformation during the injection molding process. The equipment operates more stably, reducing equipment vibration and noise. At the same time, it also extends the overall service life of the equipment and reduces the probability of equipment failures, providing a reliable guarantee for the continuous production of enterprises.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXH450: HXH high-speed injection molding machine
PREV：HXH388: HXH high-speed injection molding machine
NEXT：HXH520: HXH high-speed injection molding machine

  • MODEL: HXH450

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    55

    60

    SCREW L/D RATIO

    L/D

    24

    22

    INJECTION CAPACITY IN THEORY

    cm3

    582

    692

    INJECTION WEIGHT(PS)

    g

    529

    630

    INJECTION PRESSURE

    MPa

    171

    144

    INJECTION VELOCITY

    mm/s

    600

    PLASTICIZING CAPACITY

    g/s

    80

    97

    SCREW SPEED

    rpm

    400

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    4500

    MOVING MOULD-PLATE STROKE

    mm

    705

    MAX. MOULD HEIGHT

    mm

    780

    MIN. MOULD HEIGHT

    mm

    280

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    750*700

    HYDRAULIC EJECTOR FORCE

    KN

    181

    HYDRAULIC EJECTOR STROKE

    mm

    100

    EJECTOR NUMBER

    n

    9

    OTHERS

    PUMP PRESSURE

    MPa

    19

    MOTOR/DRIVING POWER

    KW

    55+55

    HEATING CAPACITY

    KW

    20.3

    MACHINE DIMENSION (L*W*H)

    m

    7.67*1.92*2.16

    MACHINE WEIGHT

    t

    17

    OIL TANK CAPACITY

    L

    600
