OEM HXM268-PVC: PVC injection molding machine

Product

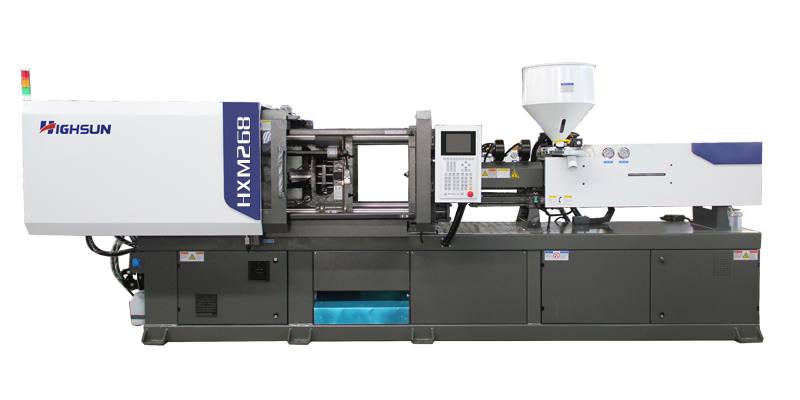

HXM268-PVC: PVC injection molding machine

Product Details

HIGHSUN PVC fitting machine, clamping force:168-850T

1.Adopt the special design of screw & barrel for PVC material, install the air fan for cooling barrel to avoid the material overheating and coking;

2. Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;

3.Extended width of security door for making PVC fitting mould with better installation, to suit PVC fitting molds (core puller cylinder) installation convenience;

4.Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution with complete hydraulic system and injection unit.

MODEL:HXM268PVC

TECHNICAL PARAMETER TABLE



INJECTION UNIT

SCREW DIAMETER

mm

55

SCREW L/D RATIO

L/D

20

INJECTION CAPACITY IN THEORY

cm3

546

INJECTION WEIGHT(PVC)

g

685

INJECTION PRESSURE

MPa

185

INJECTION RATE

g/s

333

PLASTICIZING CAPACITY

g/s

45

SCREW SPEED

rpm

200

CLAMPING UNIT

CLAMPING FORCE

KN

2680

MOVING MOULD-PLATE STROKE

mm

550

MAX. MOULD HEIGHT

mm

600

MIN. MOULD HEIGHT

mm

230

SPACE BWTWEEN TIE-BARS (W*H)

mm

620*570

HYDRAULIC EJECTOR FORCE

KN

86

HYDRAULIC EJECTOR STROKE

mm

170

EJECTOR NUMBER

n

13

OTHERS

PUMP PRESSURE

MPa

17.5

MOTOR POWER

KW

30

HEATING CAPACITY

KW

16.83

MACHINE DIMENSION (L*W*H)

m

5.88*1.71 *2.15

MACHINE WEIGHT

t

8.5

OIL TANK CAPACITY

L

311



Highsun plastic injection molding machine
Machine production pictures gallery

  • Create value for customers

    NINGBO BEILUN HIGHSUN MACHINERY CO., LTD. is a OEM/ODM HXM268-PVC: PVC injection molding machine Suppliers and company, is located in the "China's plastic machine capital" - Beilun Science and Technology Park, Ningbo City, Zhejiang Province,covers more than 1.2 million square feet of industrial park. specializing in the production of "HIGHSUN" Brand high-grade precision plastic injection molding machine. Undertaking the motto of “advance along the way of science and technology, manufacture high-grade machines”. The business philosophy is “Pursuing Excellence, Molding Perfection”.

  • Create benefits for partners

    HX-HIGHSUN MACHINERY integrates R&D, processing, manufacturing, assembly, and debugging of injection molding machines, and has been committed to fine management and zero-defect construction for a long time. Formed the characteristics of the model series represented by small all-electric, medium-sized connecting rods, and large two-platen machines. The main product is the HXM servo energy-saving series, focusing on the promotion of hybrid machines. The clamping force ranges from 98 tons to 3,000 tons. Special orders (clear two-color, mixed two-color, high-speed machines), PET, etc. can be accepted.

  • Pursuing Excellence, Molding Perfection

    With strong research and development capabilities, excellent processing equipment, professional after-sales service and honest business style,n ingbo Beilun Highsun Machinery Co., Ltd. sells well all over the country and is exported to Russia, South America, Southeast Asia and other countries and regions. The company has established a complete sales and service network in Guangdong, Fujian, Jiangxi, Zhejiang, Sichuan, Hubei, Shanghai, Jiangsu, Tianjin and other places in China. The marketing system for the domestic and international markets with the HIGHSUN(HAIXIONG in Chinese) brand as its core is fully blooming.
