1.Specially designed screw and high-torque melt motor are used to facilitate the plasticization and molding of PET raw materials;
2.Equipped with an ejection device sufficient to meet the production of PET products;
3.The high-power motor-pump system makes the cycle period shorter and increases the production efficiency;

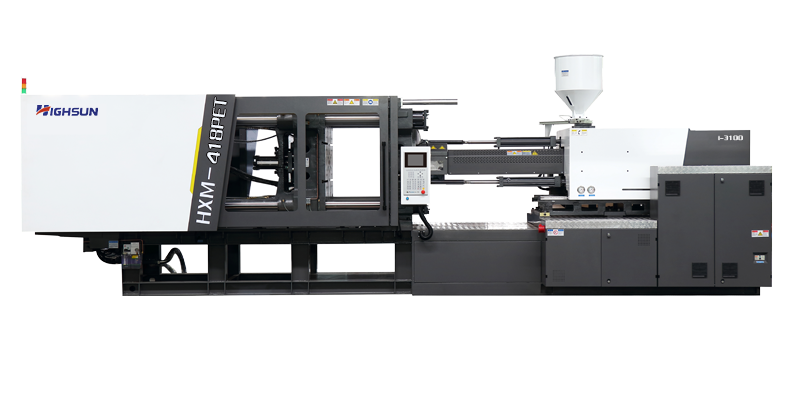

MODEL: HX(*)410PET | |||
TECHNICAL PARAMETER TABLE | |||
INJECTION UNIT | SCREW DIAMETER | mm | 85 |
SCREW L/D RATIO | L/D | 24 | |
INJECTION CAPACITY (THEORETICAL) | cm3 | 2099 | |
INJECTION WEIGHT(PET) | g | 2435 | |
INJECTION PRESSURE | MPa | 135 | |
INJECTION RATE | g/s | 503 | |
PLASTICIZING CAPACITY | g/s | 120 | |
SCREW SPEED | rpm | 160 | |
CLAMPING UNIT | CLAMP FORCE | KN | 4100 |
OPEN STROKE | mm | 700 | |
MAX. MOULD HEIGHT | mm | 800 | |
MIN. MOULD HEIGHT | mm | 280 | |
SPACE BETWEEN TIE-BARS (W×H) | mm | 770*720 | |
EJECTOR FORCE | KN | 180 | |
EJECTOR STROKE | mm | 180 | |
EJECTOR NUMBER | n | 13 | |
OTHERS | PUMP PRESSURE | MPa | 16 |
MOTOR POWER | KW | 45/30+23 | |
HEATING POWER | KW | 32.85 | |
MACHINE DIMENSION (L×W×H) | m | 8.21*1.96*2.35 | |
MACHINE WEIGHT | t | 14.2 | |
OIL TANK | L | 687 |
