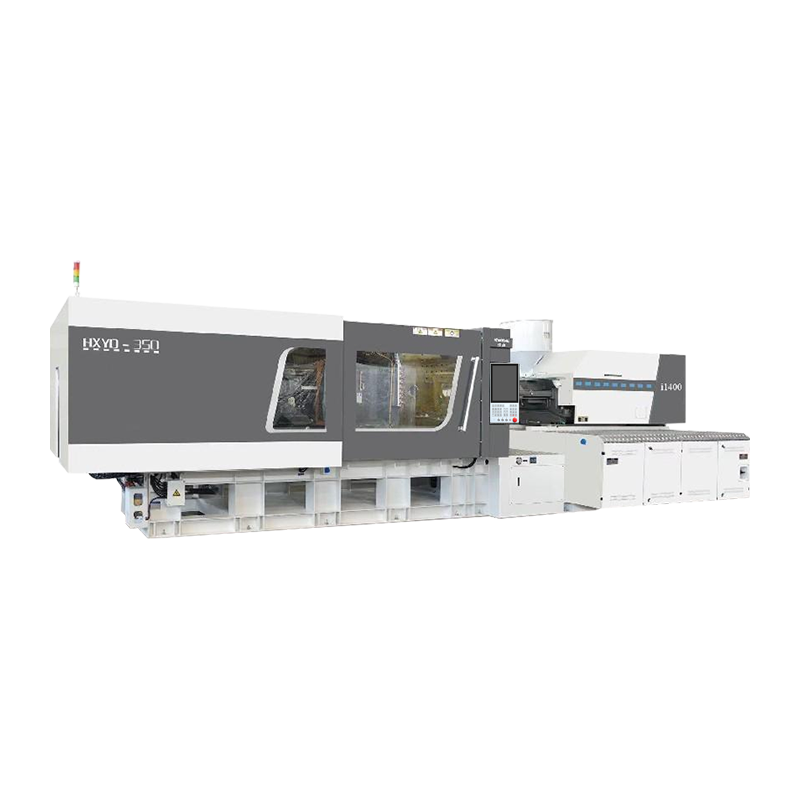

HXYD-350: HXYD hybrid injection molding machine

Product Details

HXYD Series – Hybrid Injection Molding Machine is a new solution scheme for high-end packaging industry, high-end daily necessities industry and medical supply industry, which is based on full-electric machine(Injection rate: 500mm/s; production was started in 2009) and high-speed machine (production was started in 2012). It is combined with the clamping parts of high-speed machine and injection parts of full-electric machine, taking into account the demand of energy saving and environmental protection. It meets the requirement of large clamping force and high performance injection unit for this kind of product. (Mould Open&Charge Simultaneously.)

Product Introduction:
1. Modular Injection Unit with Excellent Acceleration Performance
2. High-stiffness Clamping Unit for High-speed Machine.
3. Hydraulic System with High Response and Low Noise.
4. Optimized Control System Excellent in Response and Accuration for Hybrid Machine

HXYD350

Clamping Unit



Clamping force

kN

3500

Moving mould-plate stroke

mm

630

Max.Mould height

mm

650

Min.Mould height

mm

250

Space between tie-bars

mm

710x660

Hydraulic ejector force

kN

137

Hydraulic ejector stroke

mm

180

Ejector number

n

13



Injection Unit

i900

i1000

i1400

Screw diameter

mm

45

50

55

50

55

60

55

60

65

Screw LD ratio

LD

22.2

20

20

22

20

20

21.8

20

20

lnjection capacity in theory

Cm³

381

471

570

471

570

678

665

791

929

Injection weight(PS)

g

347

428

518

428

518

617

605

720

845

Injection pressure

bar

2469

2000

1653

2178

1800

1513

2142

1800

1534

Injection velocity

mm/s

350

350

350

Plasticizing capacity

g/s

30

42

50

42

50

60

50

60

75

Screw speed

rpm

400

400

400











Other





Pump pressure

MPa

17.5

Motor/Driving power

kW

37(注)+23(熔)+23(油)

37(注)+23(熔)+23(油)

37(注)+23(熔)+23(油)

Heating capacity

kW

16.83

20.3

24.3

Machine dimension

m

7.32x1.88x2.21

7.32x1.88x2.21

7.32x1.88x2.28

Machine weight

t

13.2

13.5

14.1

oil tank capacity

L

530
