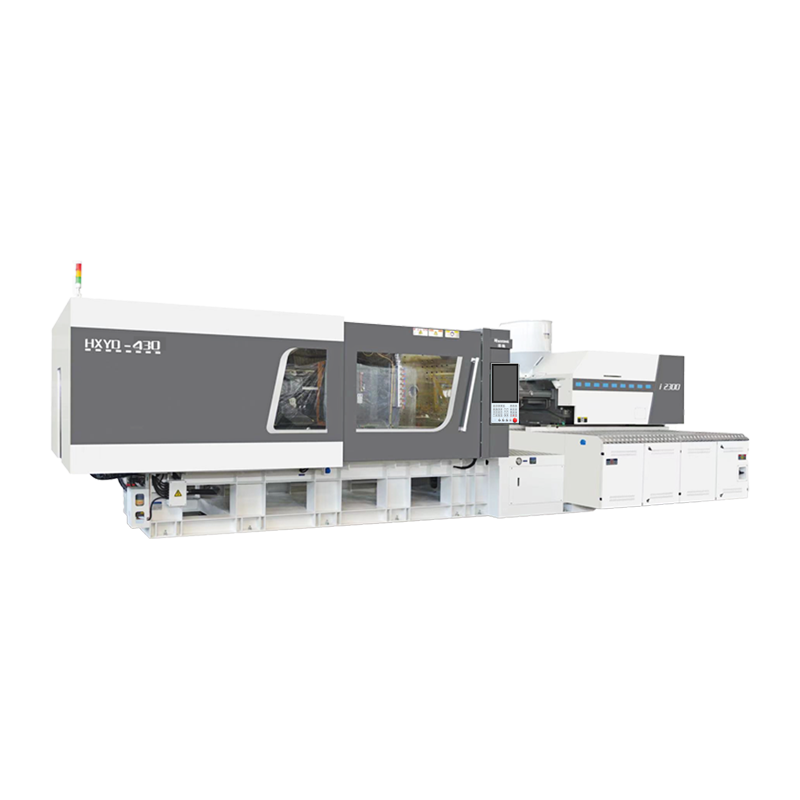

HXYD-430: HXYD hybrid injection molding machine

Product Details

HXYD hybrid series of injection molding machine is a new solution for high-end packing industry, high-end household wares and medical suppliers industry, which was reserching and developing on base of fully-electric (injection speed:500mm/s ,start producing since 2009) and highspeed series(start to producing since 2012), combined with the clamping unit of high-speed  series and injection unit  of fullly -electric series , considerated with both of energy saving and environment protection . it satisfies the needs of stronger clamping force and higher performace of injection unit , provide more energy saving and higher efficience (simulaneously mold opening and charging).
Product introduction
1 Modular injection Unit with Excellent Acceleration Performance
2 High-stiffness Clamping Unit for High-speed machine
3 Hydraulic System with High Response and low Noise
4 Optimized Control syestem Excellent in Response and Accuration for Hybrid Machine

HXYD430

Clamping Unit



Clamping force

kN

4300

Moving mould-plate stroke

mm

690

Max.Mould height

mm

780

Min.Mould height

mm

280

Space between tie-bars

mm

760X710

Hydraulic ejector force

kN

197

Hydraulic ejector stroke

mm

180

Ejector number

n

13



Injection Unit

i1000

i1400

i1600

Screw diameter

mm

50

55

60

55

60

65

60

65

70

Screw LD ratio

LD

22

20

20

21.8

20

20

21.6

20

20

lnjection capacity in theory

Cm³

471

570

678

665

791

929

791

929

1078

Injection weight(PS)

g

428

518

617

605

720

845

720

845

980

Injection pressure

bar

2178

1800

1513

2142

1800

1534

2113

1800

1552

Injection velocity

mm/s

350

350

350

Plasticizing capacity

g/s

50

60

75

60

75

90

75

90

110

Screw speed

rpm

400

400

400



Other



Pump pressure

MPa

17.5

Motor/Driving power

kW

45(注)+23(熔)+23+23(油)

45(注)+23(熔)+23+23(油)

45(注)+23(熔)+23+23(油)

Heating capacity

kW

20.3

20.3

20.3

Machine dimension

m

7.65x1.95x2.26

7.65x1.95x2.32

7.65x1.95x2.32

Machine weight

t

17.1

17.5

17.9

oil tank capacity

L

690
