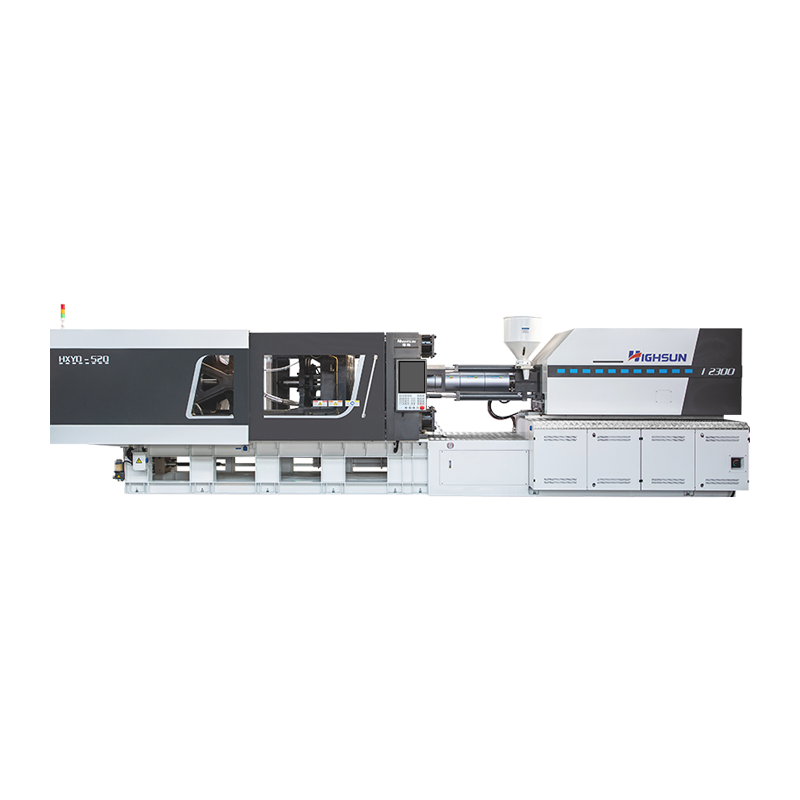

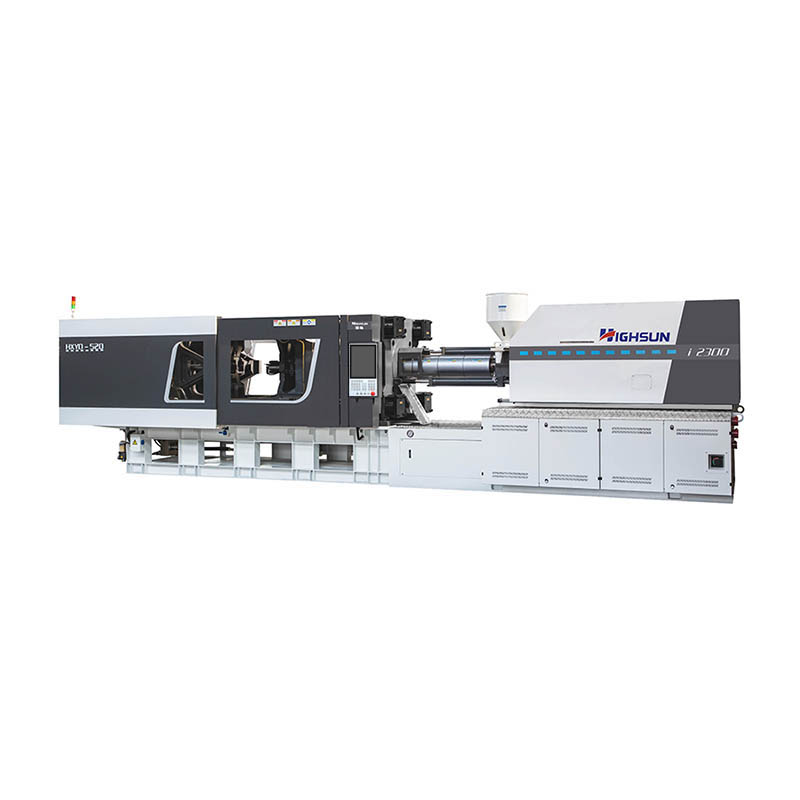

HXYD-520: HXYD hybrid injection molding machine

This injection molding machine employs cutting-edge hybrid oil-electric drive technology, seamlessly integrating the hydraulic system's robust clamping force with the electric system's precise injection control. The electric system, equipped with high-performance motors, delivers rapid and accurate power for material injection, ensuring high-speed and precise filling of mold cavities, thereby significantly enhancing production efficiency and product quality. Simultaneously, the hydraulic system focuses on generating an exceptional 520-ton clamping force to maintain mold tightness during injection, effectively preventing material leakage. The synergistic operation of both systems achieves highly efficient power output, surpassing the performance of traditional injection molding machines in terms of power dynamics.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXYD-520: HXYD hybrid injection molding machine
  • HXYD-520: HXYD hybrid injection molding machine
  • HXYD-520: HXYD hybrid injection molding machine
  • HXYD-520: HXYD hybrid injection molding machine
  • HXYD-520: HXYD hybrid injection molding machine
  • HXYD-520: HXYD hybrid injection molding machine
  • HXYD-520: HXYD hybrid injection molding machine
  • HXYD-520: HXYD hybrid injection molding machine
PREV：HXYD-430: HXYD hybrid injection molding machine
NEXT：HXYD-600: HXYD hybrid injection molding machine

  • MODEL: HXYD 530/i2300H

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    65

    70

    75

    SCREW L/D RATIO

    L/D

    21.5

    20

    20

    INJECTION CAPACITY IN THEORY

    cm³

    1128

    1308

    1502

    INJECTION WEIGHT(PS)

    g

    1027

    1191

    1367

    INJECTION PRESSURE

    MPa

    2088

    1800

    1568

    PLASTICIZING CAPACITY

    g/s

    90

    105

    120

    SCREW SPEED

    rpm

    400

    INJECTION VELOCITY

    mm/s

    350

    MOTOR POWER

    KW

    60+60(pour)+59(melt)+38+38(oil)

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5300

    MOVING MOULD-PLATE STROKE

    mm

    780

    MAX. MOULD HEIGHT

    mm

    800

    MIN. MOULD HEIGHT

    mm

    320

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    820*770

    HYDRAULIC EJECTOR FORCE

    KN

    181

    HYDRAULIC EJECTOR STROKE

    mm

    200

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    16

    HEATING CAPACITY

    KW

    30

    MACHINE DIMENSION (L*W*H)

    m

    8.13*2.09*2.32

    MACHINE WEIGHT

    t

    23

    OIL TANK CAPACITY

    L

    650



    MODEL: HXYD 530/i1600H

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    60

    65

    70

    SCREW L/D RATIO

    L/D

    21.6

    20

    20

    INJECTION CAPACITY IN THEORY

    cm³

    791

    929

    1078

    INJECTION WEIGHT(PS)

    g

    720

    845

    980

    INJECTION PRESSURE

    MPa

    2000

    1704

    1469

    PLASTICIZING CAPACITY

    g/s

    75

    90

    105

    SCREW SPEED

    rpm

    400

    INJECTION VELOCITY

    mm/s

    350

    MOTOR POWER

    KW

    67(pour)+44(melt)+38+38(oil)

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5300

    MOVING MOULD-PLATE STROKE

    mm

    780

    MAX. MOULD HEIGHT

    mm

    800

    MIN. MOULD HEIGHT

    mm

    320

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    820*770

    HYDRAULIC EJECTOR FORCE

    KN

    181

    HYDRAULIC EJECTOR STROKE

    mm

    200

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    16

    HEATING CAPACITY

    KW

    28

    MACHINE DIMENSION (L*W*H)

    m

    8.13*2.09*2.32

    MACHINE WEIGHT

    t

    22.3

    OIL TANK CAPACITY

    L

    650



    MODEL: HXYD 530/i1400H

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    55

    60

    65

    SCREW L/D RATIO

    L/D

    21.8

    20

    20

    INJECTION CAPACITY IN THEORY

    cm³

    665

    791

    929

    INJECTION WEIGHT(PS)

    g

    605

    720

    845

    INJECTION PRESSURE

    MPa

    2142

    1800

    1534

    PLASTICIZING CAPACITY

    g/s

    60

    75

    90

    SCREW SPEED

    rpm

    400

    INJECTION VELOCITY

    mm/s

    350

    MOTOR POWER

    KW

    67(pour)+44(melt)+38+38(oil)

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5300

    MOVING MOULD-PLATE STROKE

    mm

    780

    MAX. MOULD HEIGHT

    mm

    800

    MIN. MOULD HEIGHT

    mm

    320

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    820*770

    HYDRAULIC EJECTOR FORCE

    KN

    181

    HYDRAULIC EJECTOR STROKE

    mm

    200

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    16

    HEATING CAPACITY

    KW

    24.3

    MACHINE DIMENSION (L*W*H)

    m

    8.13*2.09*2.32

    MACHINE WEIGHT

    t

    17.5

    OIL TANK CAPACITY

    L

    650
