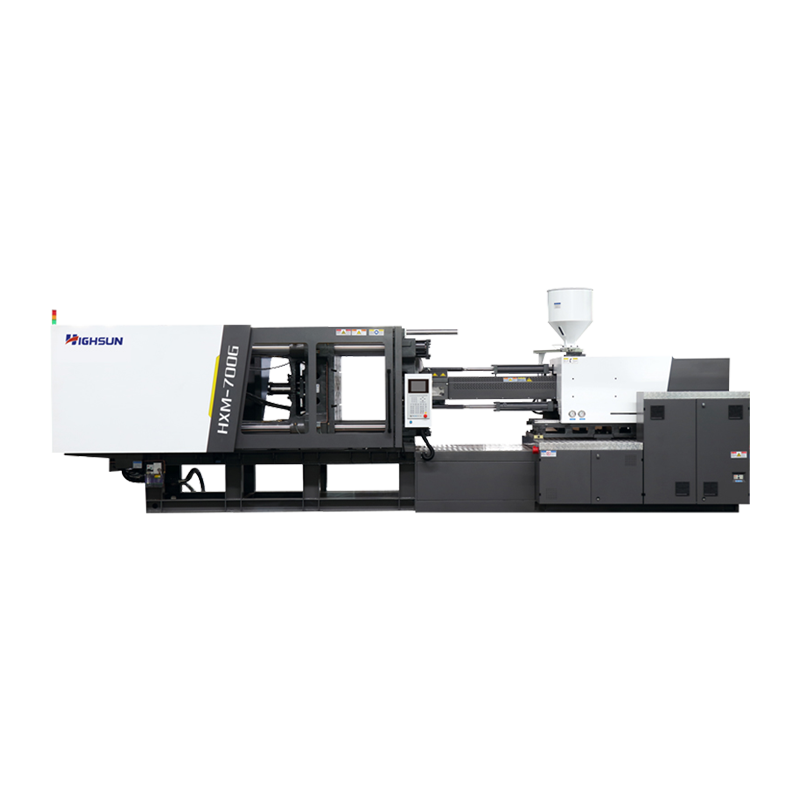

HXM700-T: HXM optimized edition for painting bucket
HXM Optimization For Crate / Painting Bucket

HXM700-T: HXM optimized edition for painting bucket

Precision and Power in Injection Molding
Equipped with a dedicated plasticizing motor and a large-diameter hydraulic circuit system, this machine delivers instantaneous response and powerful dynamic force to the injection process.  The stability of the hydraulic system is critical during molding, and this unit utilizes internationally renowned hydraulic components to ensure precise control and smooth operation.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM700-T: HXM optimized edition for painting bucket
PREV：HXM580-T: HXM optimized edition for painting bucket
NEXT：No next article

  • MODEL: HXM700-G/5700

    TECHNICAL PARAMETER TABLE

    A

    INJECTION UNIT

    SCREW DIAMETER

    mm

    110

    SCREW L/D RATIO

    L/D

    19

    INJECTION CAPACITY IN THEORY

    cm³

    4371

    INJECTION WEIGHT(PS)

    g

    3978



    oz

    140.3

    INJECTION PRESSURE

    MPa

    132

    INJECTION RATE

    g/s

    924

    PLASTICIZING CAPACITY

    g/s

    120

    SCREW SPEED

    rpm

    150

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    7000

    MOVING MOULD-PLATE STROKE

    mm

    970

        MAX. MOULD HEIGHT

    mm

    950

    MIN. MOULD HEIGHT

    mm

    350

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    970*920

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    260

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    47+47

    HEATING CAPACITY

    KW

    45

    MACHINE DIMENSION (L*W*H)

    m

    9.52*2.27*2.65

    MACHINE WEIGHT

    t

    31

    OIL TANK CAPACITY

    L

    850
