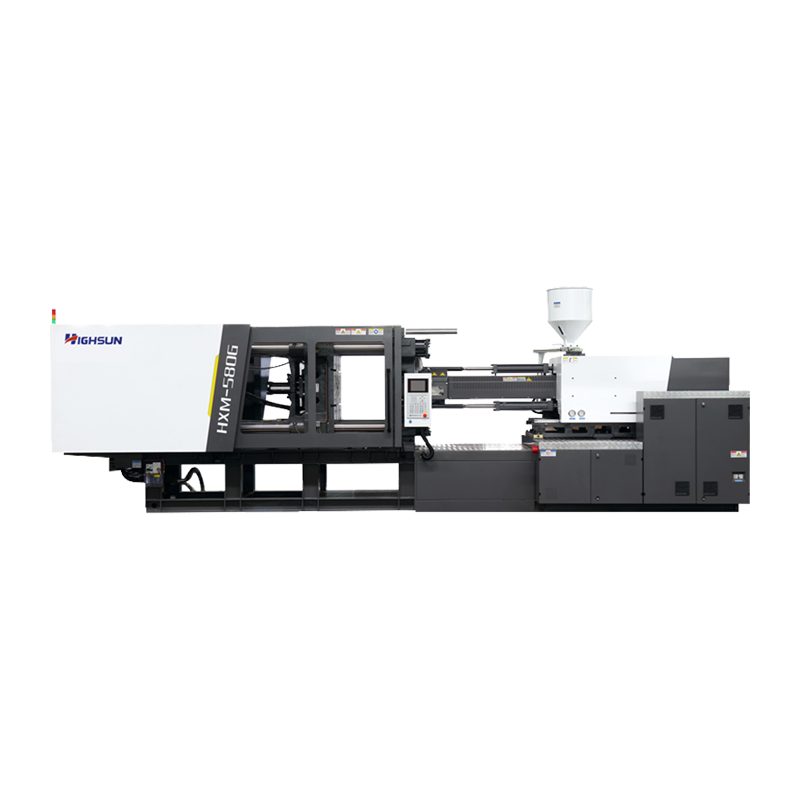

HXM580-T: HXM optimized edition for painting bucket
HXM Optimization For Crate / Painting Bucket

HXM580-T: HXM optimized edition for painting bucket

Designed and optimized specifically for the fruit and vegetable industry, the 580T addresses challenges posed by complex raw materials and harsh production environments (e.g., high dust, humidity). Built for exceptional durability, it operates reliably under demanding conditions while ensuring uninterrupted production continuity.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM580-T: HXM optimized edition for painting bucket
PREV：HXM520-T: HXM optimized edition for painting bucket
NEXT：HXM700-T: HXM optimized edition for painting bucket

  • MODEL: HXM580-G/5400

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    100

    105

    SCREW L/D RATIO

    L/D

    19

    19

    INJECTION CAPACITY IN THEORY

    cm³

    3691

    4070

    INJECTION WEIGHT(PS)

    g

    3360

    3703



    oz

    118.5

    130.6

    INJECTION PRESSURE

    MPa

    147

    133

    INJECTION RATE

    g/s

    747

    915

    PLASTICIZING CAPACITY

    g/s

    100

    110

    SCREW SPEED

    rpm

    170

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5800

    MOVING MOULD-PLATE STROKE

    mm

    870

        MAX. MOULD HEIGHT

    mm

    830

    MIN. MOULD HEIGHT

    mm

    330

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    870*840

    HYDRAULIC EJECTOR FORCE

    KN

    181

    HYDRAULIC EJECTOR STROKE

    mm

    230

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+47

    47+47

    HEATING CAPACITY

    KW

    30

    MACHINE DIMENSION (L*W*H)

    m

    8.35*2.19*2.4

    MACHINE WEIGHT

    t

    22.2

    OIL TANK CAPACITY

    L

    750
