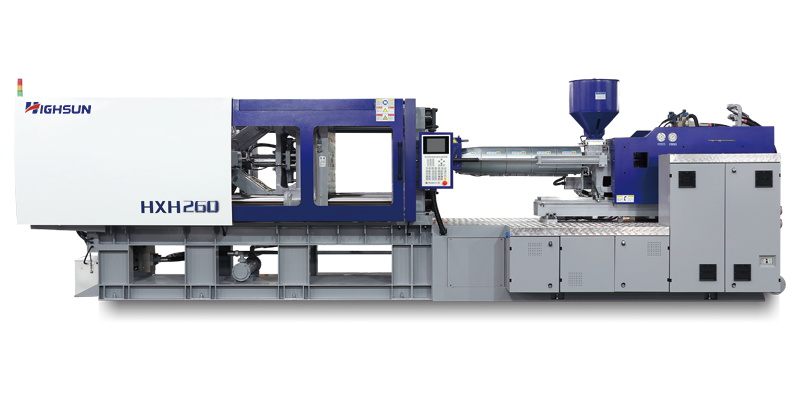

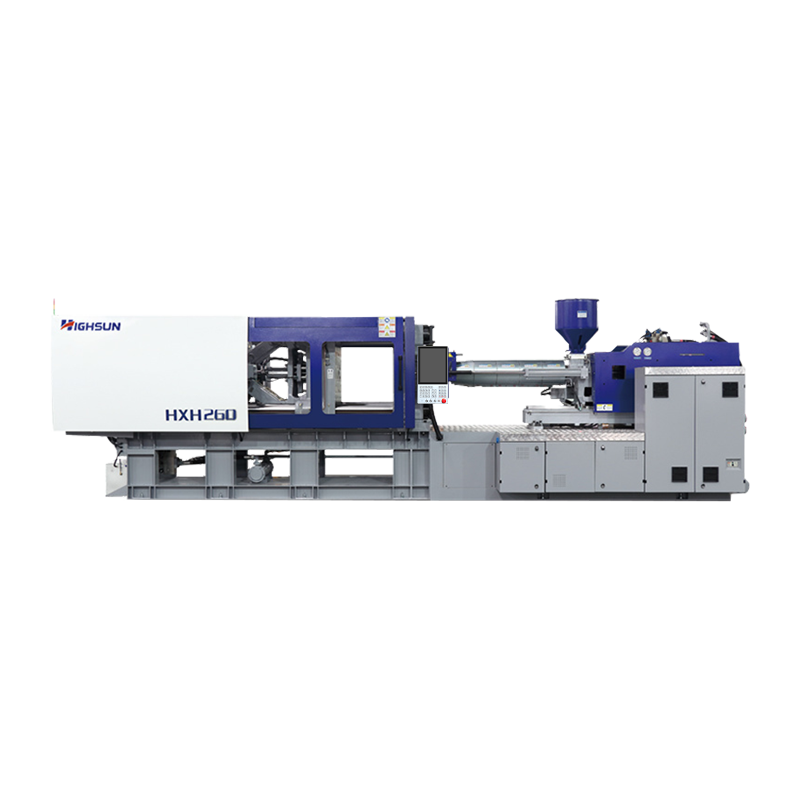

HXH 260

HXH 260

Business Type:Manufacturer, Exporter
Terms of payment and delivery:T/T or L/C at sight
Minimum order quantity:1 set
Packing details:Export standard
Delivery time:7-15 Days
Payment method:T/T or L/C at sight
Views: 1,717
E-mail : haixiong@highsun-machinery.com

Product Details

The computer control system uses bus communication such as CANbus EtherCAT to achieve full digital control.

The temperature control uses a dedicated control module with an accuracy of 1 degree.

It has a power monitoring function to monitor the energy consumption of current production.

The special single-cylinder injection structure greatly reduces the amount of oil returning during high-speed injection and reduces the oil return pressure during injection, thereby increasing the acceleration of the machine during injection.

Graphite steel sleeve is used at the elbow link and the guide rod, which is lubricated with thin oil and has better bearing capacity and wear resistance. Give the machine a longer life.

The switch mode action is controlled by a proportional directional valve, which has the characteristics of rapid acceleration of motion, stable high-speed operation, and precise control of the position of the mold opening.

The hydraulic system adopts dual servo drive control, which has the advantages of high efficiency, energy saving and low noise, and can realize the functions of mold opening and material storage synchronization.

Based on many years of experiments and research, Haixiong Thin Wall High Speed ​​Machine series is specially designed for products with short molding cycle and high speed injection molding. Excellent performance in terms of motion characteristics, machine accuracy, and service life.

Widely used in the production of packaging plastic products, medical plastic products, 3C electronic products.






      A B

Injection Unit
Screw diameter mm 50 55
Screw L/D ratio L/D 24 22
Injection capacity in theory cm3 422 510
Injection weight(ps) g 384 464
Injection pressure MPa 191 158
Injection velocity mm/s 310
Plasticizing capacity g/s 57 80
Screw speed rpm 400

Clamping Unit
Clamping force kN 2600
Moving mould-plate stroke mm 530
Max.Mould height mm 600
Min.Mould height mm 230
Space between tie-bars mm 610×560
Hydraulic ejector force kN 80
Hydraulic ejector stroke mm 150
Ejector number n 13

Pump pressure MPa 17.5
Motor/Driving power kW 30+30
Heating capacity kW 17.8
Machine dimension m 6.49×1.80×2.11
Machine weight t 10
Oil tank capacity L 560









Highsun plastic injecdtion molding machine
