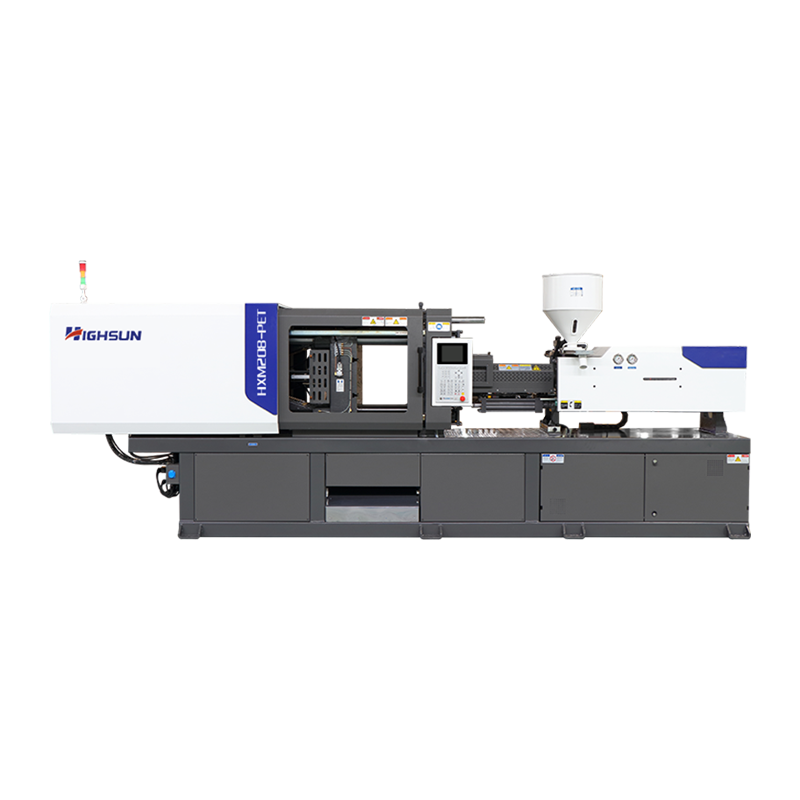

HXM208-PET: PET-preform injection molding machine
PET Preform Injection Molding Machine

HXM208-PET: PET-preform injection molding machine

The 208T PET injection molding machine is a dedicated model with a medium-tonnage clamping force (208 tons). It is designed to meet the rapid molding requirements of PET (polyethylene terephthalate) materials and is widely used in fields such as beverage bottle preforms, food packaging, and medical containers. This model integrates technologies of high efficiency, energy conservation, precise control, and a fast cycle time, meeting the industrial production needs of high productivity and low energy consumption.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM208-PET: PET-preform injection molding machine
PREV：No previous article
NEXT：HXM328-PET: PET-preform injection molding machine

  • MODEL:HX(*)208PET/1600

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    50

    SCREW L/D RATIO

    L/D

    24

    INJECTION CAPACITY (THEORETICAL)

    cm³

    500

    INJECTION WEIGHT(PET)

    g

    580

    INJECTION PRESSURE

    MPa

    150

    INJECTION RATE

    g/s

    264

    PLASTICIZING CAPACITY

    g/s

    33

    SCREW SPEED

    rpm

    190

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2080

    MOVING MOULD-PLATE STROKE

    mm

    500

    MAX. MOULD HEIGHT

    mm

    550

    MIN. MOULD HEIGHT

    mm

    200

    SPACE BETWEEN TIE-BARS (W×H)

    mm

    530*480

    HYDRAULIC EJECTOR FORCE

    KN

    56

    HYDRAULIC EJECTOR STROKE

    mm

    140

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    21

    HEATING POWER

    KW

    16.85

    MACHINE DIMENSION (L×W×H)

    m

    5.38*1.28*2.04

    MACHINE WEIGHT

    t

    63

    OIL TANK CAPACITY

    L

    200
