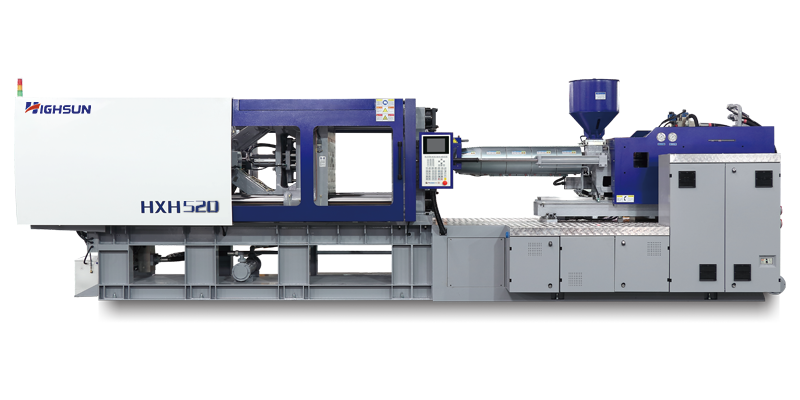

HXH 520

HXH 520

Location:China
Business Type:Manufacturer, Exporter
Brands:HIGHSUN
Certificate:CE
Model:/
Terms of payment and delivery:T/T or L/C at sight
Minimum order quantity:1 set
Price:Consultation
Packing details:Export standard
Delivery time:7-15 Days
Payment method:T/T or L/C at sight
0
Views: 70
E-mail : haixiong@highsun-machinery.com

Product Details

The computer control system uses bus communication such as CANbus EtherCAT to achieve full digital control.

The temperature control uses a dedicated control module with an accuracy of 1 degree.

It has a power monitoring function to monitor the energy consumption of current production.

The special single-cylinder injection structure greatly reduces the amount of oil returning during high-speed injection and reduces the oil return pressure during injection, thereby increasing the acceleration of the machine during injection.

Graphite steel sleeve is used at the elbow link and the guide rod, which is lubricated with thin oil and has better bearing capacity and wear resistance. Give the machine a longer life.

The switch mode action is controlled by a proportional directional valve, which has the characteristics of rapid acceleration of motion, stable high-speed operation, and precise control of the position of the mold opening.

The hydraulic system adopts dual servo drive control, which has the advantages of high efficiency, energy saving and low noise, and can realize the functions of mold opening and material storage synchronization.

Based on many years of experiments and research, Haixiong Thin Wall High Speed ​​Machine series is specially designed for products with short molding cycle and high speed injection molding. Excellent performance in terms of motion characteristics, machine accuracy, and service life.

Widely used in the production of packaging plastic products, medical plastic products, 3C electronic products.









HXH 520
      A B


Injection Unit
Screw diameter mm 60 65
Screw L/D ratio L/D 24 22
Injection capacity in theory cm3 692 846
Injection weight(ps) g 630 770
Injection pressure MPa 148 126
Injection velocity mm/s 380
Plasticizing capacity g/s 97 110
Screw speed rpm 400


Clamping Unit
Clamping force kN 5200
Moving mould-plate stroke mm 780
Max.Mould height mm 800
Min.Mould height mm 320
Space between tie-bars mm 820×770
Hydraulic ejector force kN 181
Hydraulic ejector stroke mm 200
Ejector number n 13


Other
Pump pressure MPa 17.5
Motor/Driving power kW 45+45
Heating capacity kW 28
Machine dimension m 7.85×2.00×2.40
Machine weight t 17.5
Oil tank capacity L 1000

















Highsun plastic injecdtion molding machine
Machine production pictures gallery
