HXM 410-I

HXM 410-I

Location:China
Business Type:Manufacturer, Exporter
Brands:HIGHSUN
Certificate:CE
Model:/
Terms of payment and delivery:T/T or L/C at sight
Minimum order quantity:1 set
Price:Consultation
Packing details:Export standard
Delivery time:7-15 Days
Payment method:T/T or L/C at sight
1+
Views: 393
E-mail : haixiong@highsun-machinery.com

Product Details

High quality features



The “new breakthrough” of the hydraulic injection molding machine has realized “pressure valve ring control” and “energy supply and demand matching”, leading the injection molding machine in order to develop the trend!

Pressure valve ring control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure is equal to the set pressure.

Matching energy supply and demand: How much energy does the injection molding machine do, how much energy the power system provides, and very little energy loss.





Super energy saving



40% more energy efficient than the variable pump system. 60% energy saving than the fixed pump + fixed speed motor (depending on the product can not save energy)





High precision, high response



The high-precision, high-sensitivity pressure sensor and rotary encoder realize closed-loop control of pressure and flow, and the repeat progress error is less than 1%. The servo motor reaches the maximum output power in only 0.05 seconds.





low noise



The noise value is within 78db. When the machine is not moving, the servo motor stops almost no noise.





Save cooling water



Overflow heating of the non-quantitative pump + fixed speed motor system. Low temperature of hydraulic oil, greatly reducing the amount of cooling water





New clamping structure



The involute five-point elbow type clamping mechanism, the connecting rod and template of the cast-connected structure strengthened by finite element analysis effectively reduce the stress and deformation, and improve the rigidity and precision of the clamping part





New power composition



The servo motor, servo drive, pressure sensor, rotary encoder, gear pump and high-precision injection molding machine special injection molding controller constitute a new power system, so that the energy demand of the injection molding machine is best matched.











HXM410-I
Technical Parameter Table A B

Injection Unit
Screw diameter mm 65 70
 Screw L/D ratio L/D 22.6 21
Injection capacity in theory cm3 1128 1308
Injection weight(ps) g 1026 1200
oz 36.1 41.9
Injection pressure MPa 182 157
Injection rate g/s 245 284
Plasticizing capacity g/s 33 41
Screw speed rpm 136

Clamping Unit
Clamping force kN 4100
Moving mould-plate stroke mm 700
Max.Mould height mm 800
Min.Mould height mm 280
Space between tie-bars(wxh) mm 770×720
Hydraulic ejector force mm 125
Hydraulic ejector stroke kN 180
Ejector number n 13

Other
Pump pressure MPa 16
Motor/Driving power kW 30/37
Heating capacity kW 23.15
Machine dimension m 7.38×1.96×2.35
Machine weight t 13.7
Oil tank capacity L 680

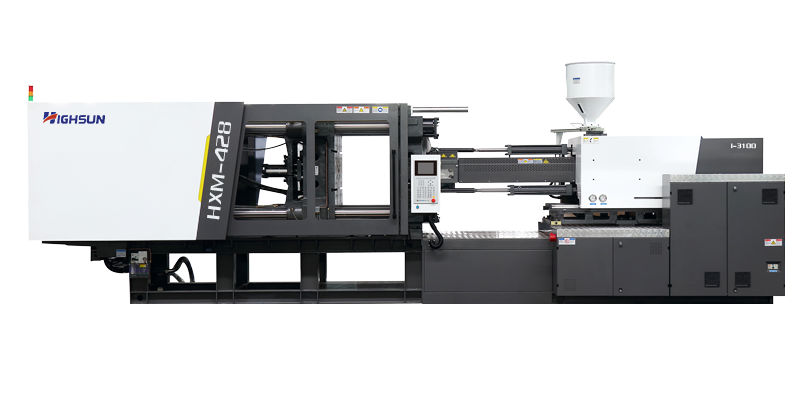

Highsun plastic injecdtion molding machine
