Location: | China |
Business Type: | Manufacturer, Exporter |
Brands: | HIGHSUN |
Certificate: | CE |
Model: | / |
Terms of payment and delivery: | T/T or L/C at sight |
Minimum order quantity: | 1 set |
Price: | Consultation |
Packing details: | Export standard |
Delivery time: | 7-15 Days |
Payment method: | T/T or L/C at sight |
High quality features
The “new breakthrough” of the hydraulic injection molding machine has realized “pressure valve ring control” and “energy supply and demand matching”, leading the injection molding machine in order to develop the trend!
Pressure valve ring control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure is equal to the set pressure.
Matching energy supply and demand: How much energy does the injection molding machine do, how much energy the power system provides, and very little energy loss.
Super energy saving
40% more energy efficient than the variable pump system. 60% energy saving than the fixed pump + fixed speed motor (depending on the product can not save energy)
High precision, high response
The high-precision, high-sensitivity pressure sensor and rotary encoder realize closed-loop control of pressure and flow, and the repeat progress error is less than 1%. The servo motor reaches the maximum output power in only 0.05 seconds.
low noise
The noise value is within 78db. When the machine is not moving, the servo motor stops almost no noise.
Save cooling water
Overflow heating of the non-quantitative pump + fixed speed motor system. Low temperature of hydraulic oil, greatly reducing the amount of cooling water
New clamping structure
The involute five-point elbow type clamping mechanism, the connecting rod and template of the cast-connected structure strengthened by finite element analysis effectively reduce the stress and deformation, and improve the rigidity and precision of the clamping part
New power composition
The servo motor, servo drive, pressure sensor, rotary encoder, gear pump and high-precision injection molding machine special injection molding controller constitute a new power system, so that the energy demand of the injection molding machine is best matched.
HXM128 | |||||
Technical Parameter Table | A | B | C | ||
Injection Unit |
Screw diameter | mm | 35 | 38 | 38 |
Screw L/D ratio | L/D | 23.8 | 22 | 20.2 | |
Injection capacity in theory | cm3 | 192 | 226 | 181 | |
Injection weight(ps) | g | 175 | 206 | 164 | |
oz | 6.1 | 7.2 | 5.7 | ||
Injection pressure | MPa | 208 | 176 | 176 | |
Injection rate | g/s | 87 | 102 | 101 | |
Plasticizing capacity | g/s | 11 | 13 | 13 | |
Screw speed | rpm | 200 | |||
Clamping Unit |
Clamping force | kN | 1280 | ||
Moving mould-plate stroke | mm | 350 | |||
Max.Mould height | mm | 450 | |||
Min.Mould height | mm | 150 | |||
Space between tie-bars(wxh) | mm | 410×370 | |||
Hydraulic ejector force | mm | 45 | |||
Hydraulic ejector stroke | kN | 120 | |||
Ejector number | n | 5 | |||
Other |
Pump pressure | MPa | 16 | ||
Motor/Driving power | kW | 13/15 | |||
Heating capacity | kW | 10.5 | |||
Machine dimension | m | 4.41×1.2×1.89 | |||
Machine weight | t | 3.2 | |||
Oil tank capacity | L | 235 |

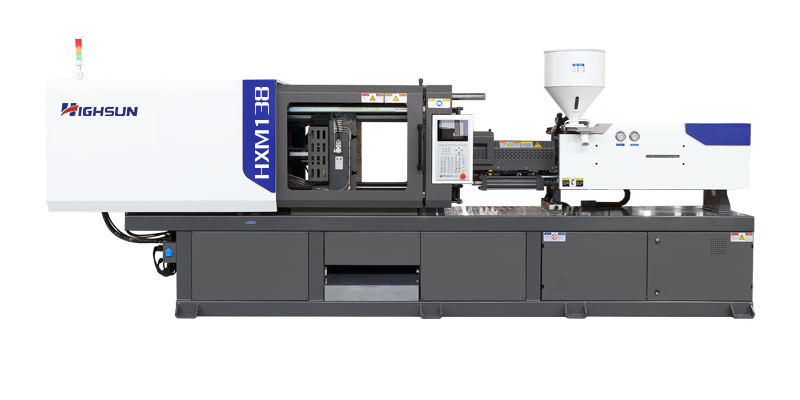

Highsun plastic injecdtion molding machine
Machine production pictures gallery
