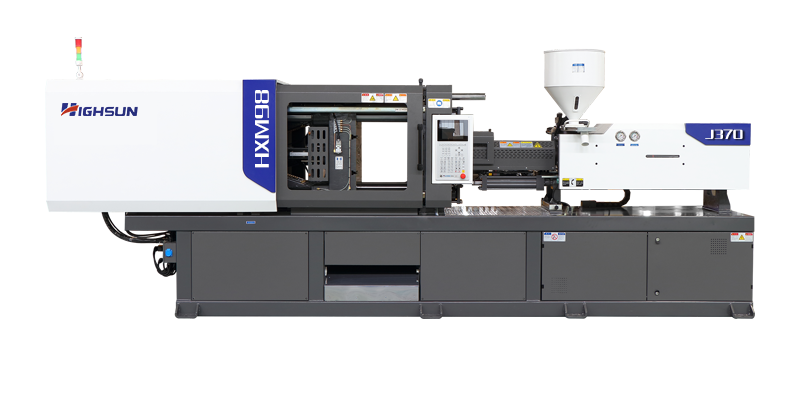

HXM 98

HXM 98

Business Type:Manufacturer, Exporter
Terms of payment and delivery:T/T or L/C at sight
Minimum order quantity:1 set
Packing details:Export standard
Delivery time:7-15 Days
Payment method:T/T or L/C at sight
Views: 3,717
E-mail : haixiong@highsun-machinery.com

Product Details

High quality features


The “new breakthrough” of the hydraulic injection molding machine has realized “pressure valve ring control” and “energy supply and demand matching”, leading the injection molding machine in order to develop the trend!

Pressure valve ring control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure is equal to the set pressure.

Matching energy supply and demand: How much energy does the injection molding machine do, how much energy the power system provides, and very little energy loss.



Super energy saving


40% more energy efficient than the variable pump system. 60% energy saving than the fixed pump + fixed speed motor (depending on the product can not save energy)



High precision, high response


The high-precision, high-sensitivity pressure sensor and rotary encoder realize closed-loop control of pressure and flow, and the repeat progress error is less than 1%. The servo motor reaches the maximum output power in only 0.05 seconds.



low noise


The noise value is within 78db. When the machine is not moving, the servo motor stops almost no noise.



Save cooling water


Overflow heating of the non-quantitative pump + fixed speed motor system. Low temperature of hydraulic oil, greatly reducing the amount of cooling water



New clamping structure


The involute five-point elbow type clamping mechanism, the connecting rod and template of the cast-connected structure strengthened by finite element analysis effectively reduce the stress and deformation, and improve the rigidity and precision of the clamping part



New power composition


The servo motor, servo drive, pressure sensor, rotary encoder, gear pump and high-precision injection molding machine special injection molding controller constitute a new power system, so that the energy demand of the injection molding machine is best matched.





Technical Parameter Table A B C D

Injection Unit
 Screw diameter mm 32 35 38 40
  Screw L/D ratio L/D 24 22 20.2 19.2
 Injection capacity in theory cm3 128 154 181 200
 Injection weight(ps) g 116 140 164 182
oz 4 4.9 5.7 6.4
 Injection pressure MPa 249 208 176 159
 Injection rate g/s 71 85 101 111
 Plasticizing capacity g/s 10 11 13 17
 Screw speed rpm 200

Clamping Unit
 Clamping force kN 980
 Moving mould-plate stroke mm 315
 Max.Mould height mm 390
 Min.Mould height mm 150
 Space between tie-bars(wxh) mm 360×340
 Hydraulic ejector force mm 45
 Hydraulic ejector stroke kN 100
 Ejector number n 5

 Pump pressure MPa 16
 Motor/Driving power kW 2019/11/11
 Heating capacity kW 8.2
 Machine dimension m 4.16×1.15×1.82
 Machine weight t 2.7
 Oil tank capacity L 203




Highsun plastic injecdtion molding machine
