OEM HXS160: HXS two-color injection molding machine


HXS160: HXS two-color injection molding machine

High quality features

The “new breakthrough” of the hydraulic injection molding machine has realized “pressure valve ring control” and “energy supply and demand matching”,professional shape future !

Pressure valve ring control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure is equal to the set pressure.

Matching energy supply and demand: How much energy does the injection molding machine do, how much energy the power system provides, and very little energy loss.

Product Details

HXS unmixed two color injection molding machines


1. With major and minor two injection components, it can inject synchronously or alternately through controlling two screw bars by the professional computer so as to get the plastic products with beautiful color.

2. Also can manufacture the sandwich plastic products, and the cost is reduced;

3. Can be widely used with PP, PE, PS and other raw materials in two color forming.




HXS H/160
Technical Parameter Table A组/B组

Injection Unit  Screw diameter mm 22 25 28 32 36
Screw L/D ratio L/D 22 22 22 23 21
Injection capacity in theory cm3 49 63 80 132 167
Injection weight(ps) g 44 58 72 120 152
oz 1.5 2.0 2.2 4.2 5.3
Injection pressure MPa 382 296 236 297 234
Injection rate g/s 63 82 103 82 103
82P103lasticizing capacity g/s 4 6 9 11 13.6
Screw speed rpm 300
Clamping Unit Clamping force KN 1600
Moving mould-plate stroke mm 400
Max.Mould height mm 550
Min.Mould height mm 230
Space between tie-bars(W×H) mm 720x420
Hydraulic ejector force KN 33
Hydraulic ejector stroke mm 100
Ejector number n 3x2
Wheel diameter mm  750
Other Pump pressure MPa 17.5
Motor/Driving power KW 16+16
Heating capacity KW 7 10.5
Machine dimension m 5.23x1.65x2.07
Machine weight t 8.5
Oil tank capacity L 380
Bearing capacity of rotary platen t 0.8

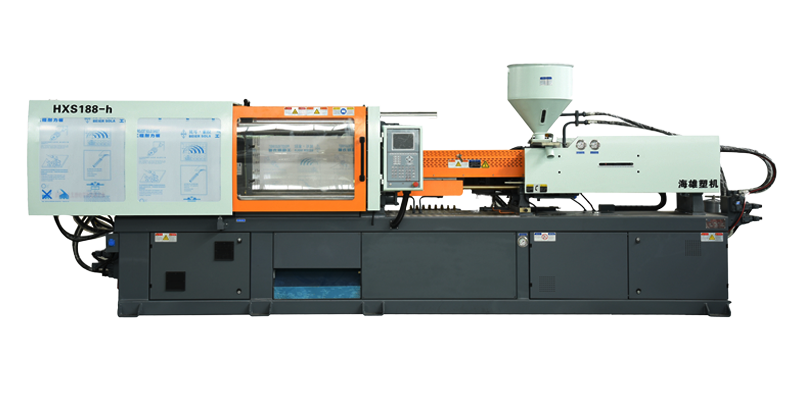

Highsun plastic injection molding machine
